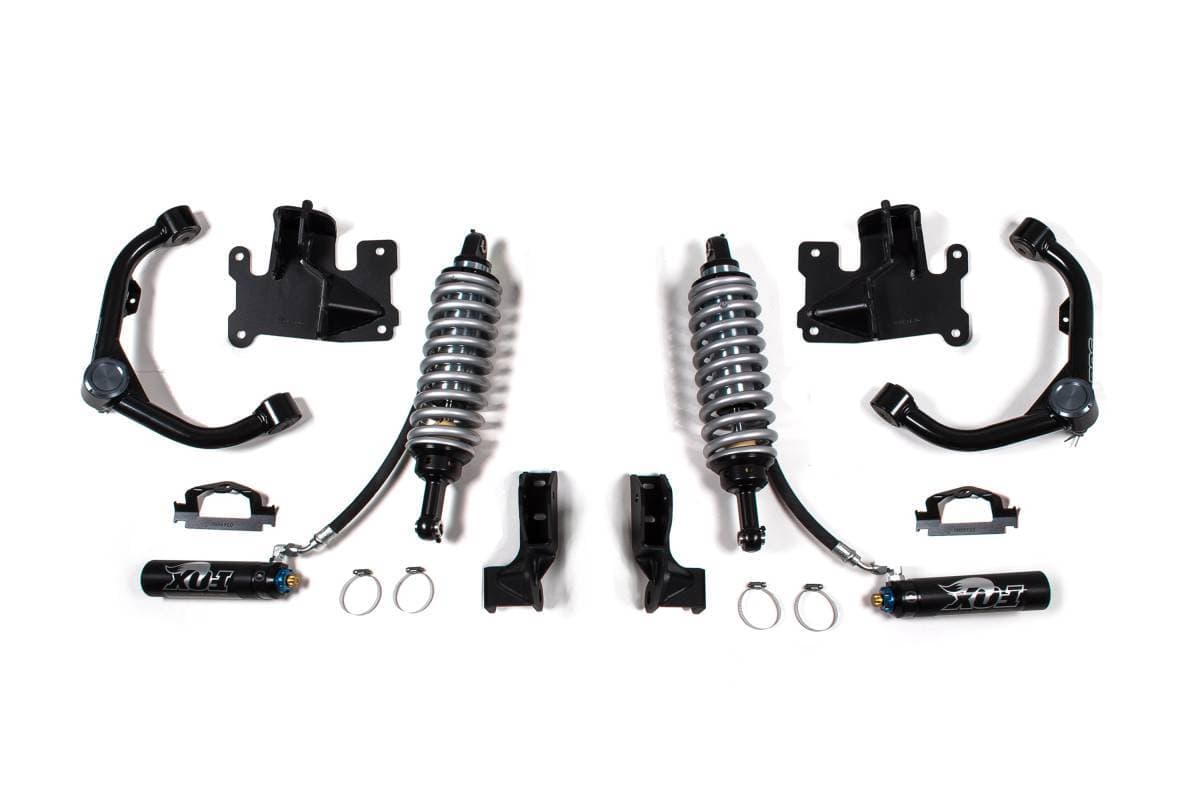

FOX 2.5 Coilover Conversion Upgrade | 6.5 Inch Lift | Chevy Silverado & GMC Sierra 2500HD/3500HD 2001-2010 4WD Diesel | BDS Suspension

Overview

BDS complete coilover conversion upgrade kits for the Chevy Silverado and GMC Sierra 2500/3500HD allow you to convert a standard lifted suspension into a coilover system. These kits include heavy-duty brackets and FOX 2.5 Coilovers, and are compatible with existing BDS 6.5-inch lift kits for seamless integration. A bolt-on bracket mounts the coilovers to the frame at the shock mount location, and a weld-in support gusset reinforces the upper mount. The factory torsion bars are replaced, and both the upper and lower control arms are upgraded to accommodate the new coilovers. BDS-designed tubular performance upper control arms work in conjunction with the 2.5 coilovers, while the new lower control arms are built from high-strength steel, fully boxed, and internally gusseted.

Features

• FOX 2.5 Factory Series coilover with remote DSC adjustment
• Performance upper control arms (UCAs) for increased strength and travel
• Bolt-on design — no welding required for main coilover bracket installation
• Compatible with BDS high clearance kits
• Eliminates rough-riding factory torsion bars

FOX 2.5 Factory DSC Coilovers

FOX 2.5 Factory DSC shocks deliver on-road comfort and off-road performance capability. Tuned and ready to install out of the box, these 2.5-inch diameter shocks include a remote reservoir for additional fluid capacity to maintain operating temperatures in rough terrain. The Dual Speed Control (DSC) adjuster provides 10 separate low-speed and 12 high-speed compression levels, adjustable via two knobs. The reservoir features a black anodized aluminum construction for increased cooling efficiency.

HD Upper Control Arms

The included upper control arms use 1.5-inch OD x .120-wall tubular construction with an indexed ball joint cup to correct ball joint positioning, allowing additional down travel and camber adjustment. Frame mounting ends use durometer-specific rubber bushings for maintenance-free operation, while the ball joint end features a greaseable ball joint for smooth, quiet operation and long-term durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap.

Specifications

• Lift Height: 6.5 inches
• Adjustable Damping: Yes

Installation

• Bolt-on bracket mounting at factory shock mount location
• Weld-in support gusset required at upper mount

Important Notes

• Torsion bar tool required to unload torsion bars
• Requires frame bracket modification
• Coilovers are preset for diesel; gas models will require preload adjustment (use #129600 spanner wrench)
• Gas models will require exhaust modification
