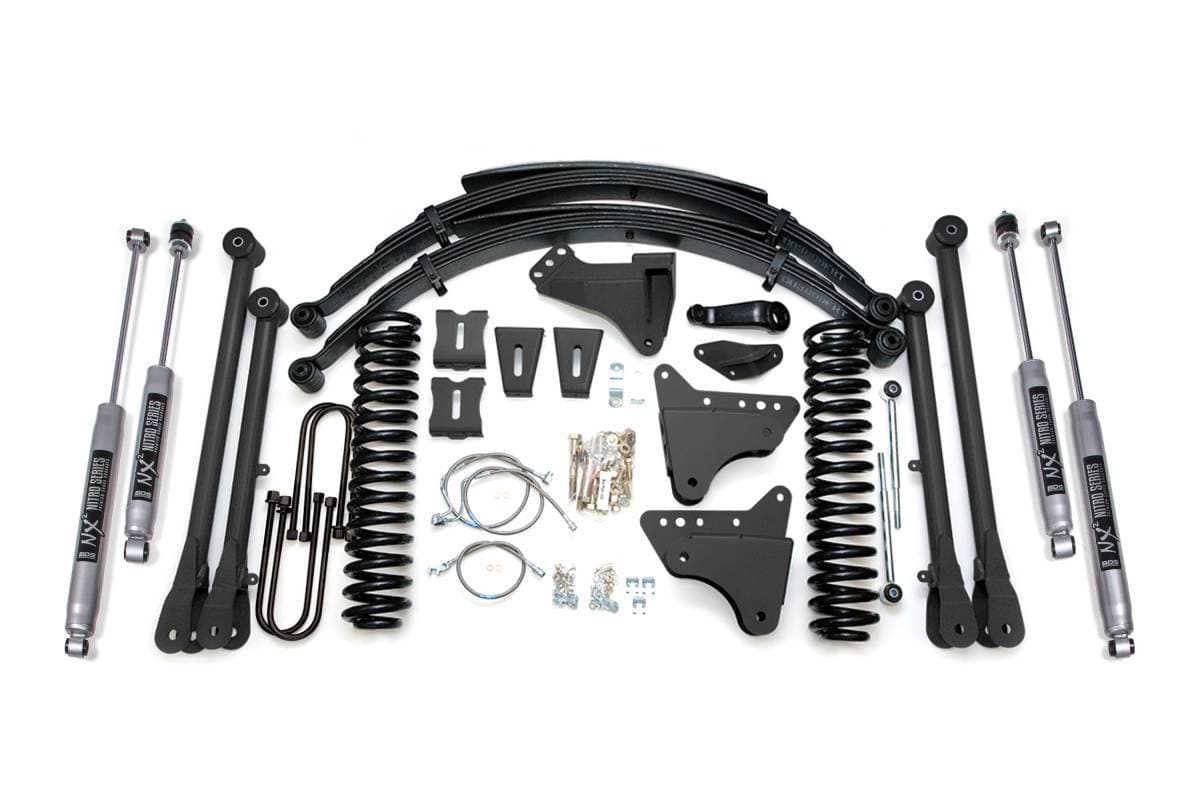

8 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2005-2007) 4WD Gas | NX2 Nitro Series Shocks | BDS Suspension

Configured with NX2 Nitro Series shocks, featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish with vehicle-specific valving for better control.

Overview

This 8-inch lift kit with 4-Link is designed for 2005–2007 Ford F250/F350 Super Duty 4WD gas trucks. The Glideride leaf spring system uses a dual-rate design: the primary three leafs remain active under no load for everyday ride quality, secondary leafs engage under moderate loads, and a bottom overload spring activates at full payload capacity. This arrangement allows the truck to maintain ride quality when unloaded without sacrificing hauling capacity.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for improved ride quality across terrain
• Heavy duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Glideride leaf springs provide full lift height and increased capacity with a built-in overload spring
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 8 inches
• Suspension Type: 4-Link
• Compatible Vehicles: 2005–2007 Ford F250/F350 Super Duty 4WD Gas

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: Grinder/Sanding Disc, Drill/Bit Set, Pitman Arm Puller

Important Notes

Front dual shock hoop requires different cylinders than what comes in the base kit. If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
