Overview

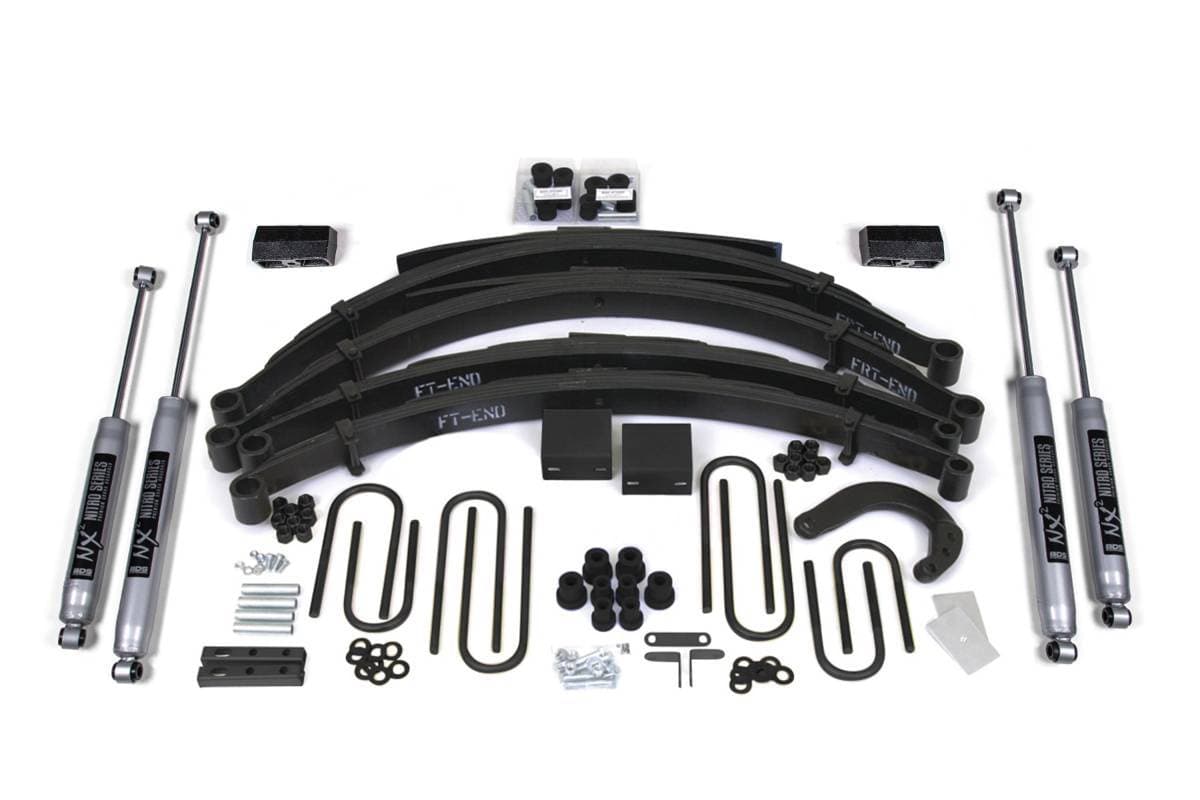

This 8-inch lift kit from BDS Suspension is designed for 1988–1991 Chevy and GMC 3/4 ton Suburban 4WD trucks. The kit improves stance, performance, and off-road capability while providing clearance for tires up to 38 inches. Up front, the kit includes Glide-Ride leaf springs, a 4-inch steering arm and 3-inch steering block for steering correction, brake line brackets, sway bar drop brackets, and precision-tuned NX2 nitrogen charged shocks. The rear of the kit uses Glide-Ride leaf springs, new U-bolts, and a matching set of NX2 Nitro shocks.
BDS Glide-Ride leaf springs feature a multi-leaf progressive spring rate design with an exclusive triple-stage construction that delivers a smooth ride under any load and provides flexibility throughout the suspension cycle.
Features
- 100% bolt-on installation
- Glide-Ride leaf springs provide full lift height and increased load capacity
- New steering arm maintains proper steering angles for improved handling
- Cast steel blocks and add-a-leaf provide a level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
Specifications
- Lift Height: 8–10 inches
- Front Lift Method: Leaf Spring
- Front Lift Height: 8 inches
- Rear Lift Method: Leaf Spring
- Rear Lift Height: 8 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Very Difficult
- Tools Required: Ball Joint Separation Tool, Cut-off Tool
Important Notes
- Both driveshafts may need to be lengthened.
- Aftermarket extended brake lines are required for installation.
- Exhaust modification may be required to clear the front driveshaft.
- Emergency brake cable extension kit may be required.
- #001608 comes with OE style rubber bushings installed.
- The 3/4 ton commonly came with a factory 56-inch eye-to-eye rear leaf spring. However, some were produced with a 52-inch rear spring. This kit will not work with 52-inch rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
- If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
- Some vehicles came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options.
