Configured with Rubber Bump Stops — factory-style hard stops that protect shocks and suspension components. Ideal for road use and light off-roading where bump stops are engaged at low speeds.
Overview

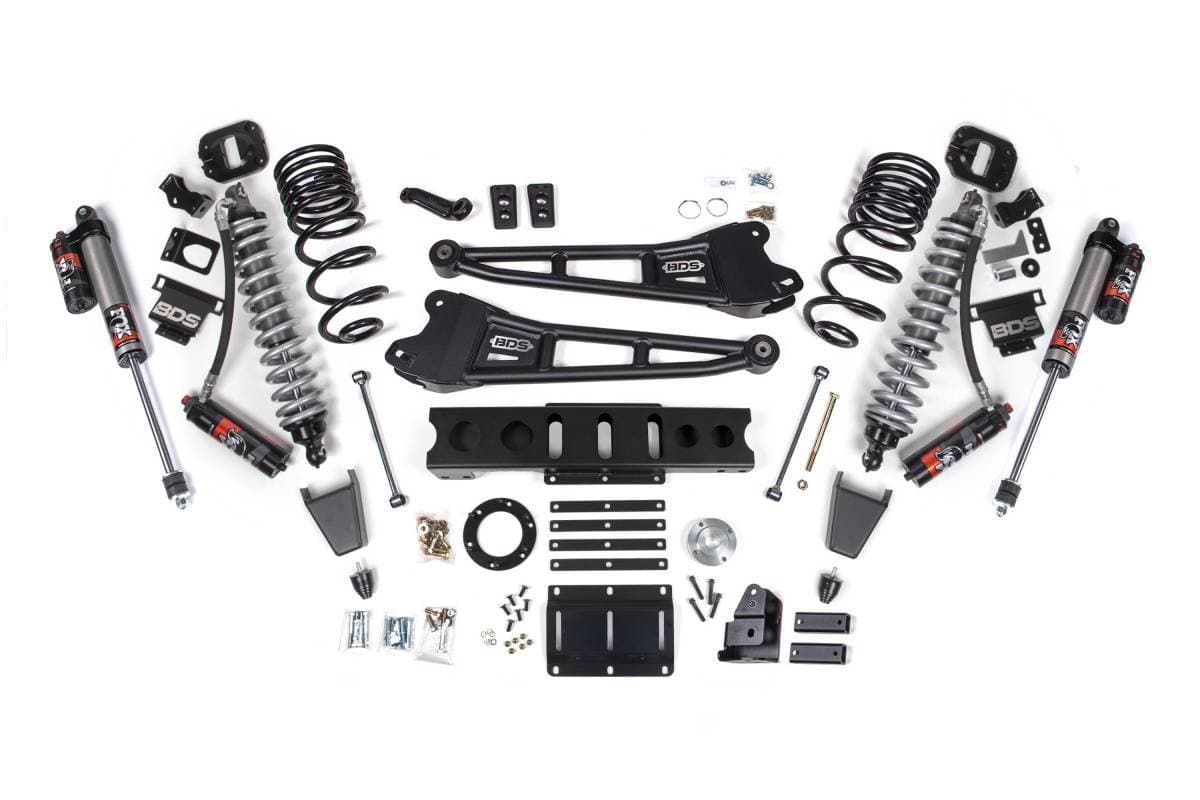

The BDS 6" Radius Arm Lift Kit for RAM 2500 trucks replaces the stock suspension setup with heavy-duty components built for demanding trail use and everyday performance. Heavy-duty BDS radius arms improve articulation and rugged strength up front, while the BDS Coilover Conversion Kit pairs with FOX 2.5 Performance Elite coilovers for precise damping and improved ride quality on and off the road. FOX 2.5 Performance Elite shocks in the rear maintain control across varied terrain. An optional FOX 2.0 hydraulic bump stop upgrade is available for the front to manage big impacts at speed.
Features
- FOX 2.5 Performance Elite coil-over mounts in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (FOX 2.0 Hydro Bump Stop)
- Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
- Front adjustable track bar allows the front axle to be re-centered after lifting
- Front sway bar correction to maintain handling performance
Specifications
- Lift Height: 6 inches
- Front Suspension: Coil-over conversion with FOX 2.5 Performance Elite coilovers
- Rear Suspension: FOX 2.5 Performance Elite shocks
- Radius Arms: Heavy-duty tubular steel construction
- Compatible: 2014–2018 RAM 2500 4WD Diesel (excludes air ride and PowerWagon models)
- Indexing ring fits 6-bolt transfer cases (most common)
Installation
- Estimated Time: 7–8 hours
- Difficulty: Difficult
- Tools Required: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Not designed for PowerWagon models
- Indexing ring only fits 6-bolt transfer cases (most common). Some heavy-duty tow package vehicles could have 8-bolt transfer cases (w/ heavy-duty Aisin 6-speed transmissions) — order 122813
