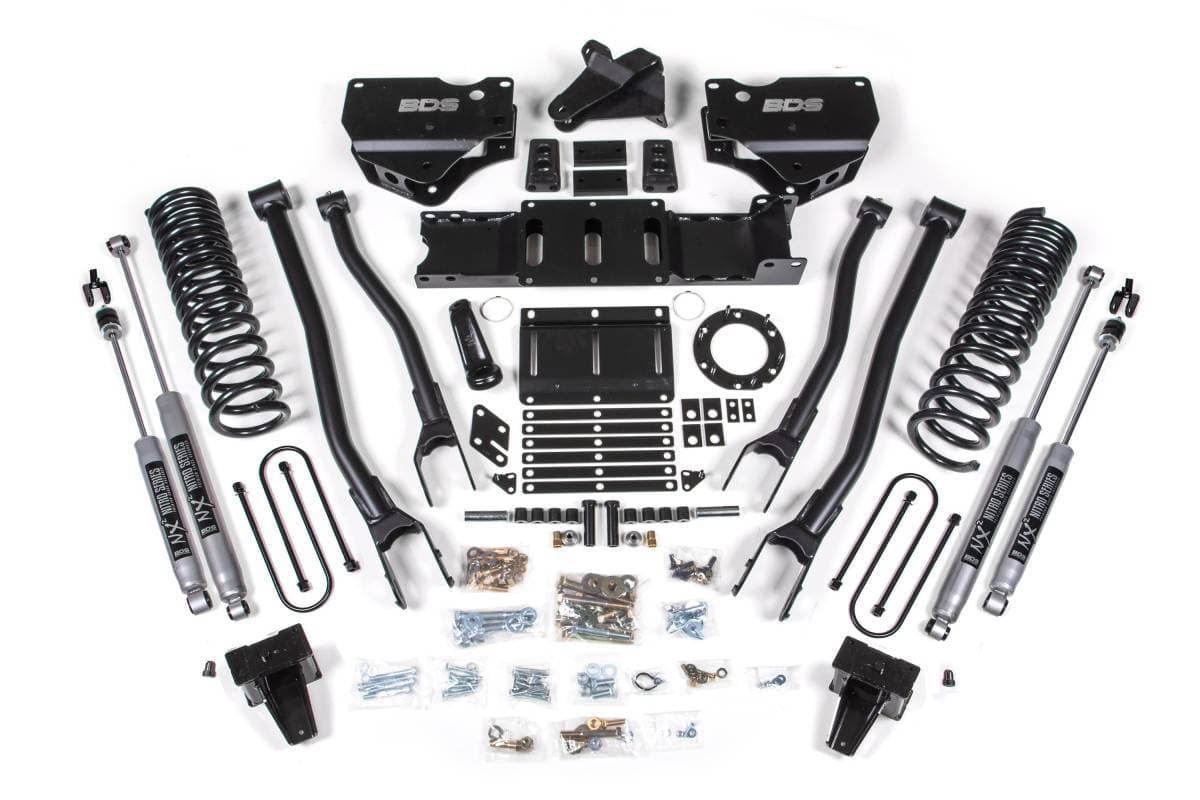

Configured for trucks without factory rear overload leaf springs, with a 6-bolt indexing ring and NX2 Nitro Series shocks. The NX2 Nitro Series features a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish. The standard 6-bolt indexing ring kit is compatible with the factory Ram 3500 transfer case bolt pattern.
Overview
This 6-inch lift kit with 4-Link conversion from BDS Suspension is designed for 2019–2024 Ram 3500 4WD diesel trucks, providing increased ground clearance with fitment for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, a 4-Link control arm conversion, forged drop pitman arm, track bar bracket for steering correction, sway bar relocation, and brake line brackets. A transfer case indexing ring and new HD transmission crossmember are included to allow use of the factory front driveshaft at ride height. The rear utilizes a high-strength steel lift block, longer U-bolts, and matched rear shocks. Shocks are available in NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite configurations.
4-Link Conversion
The factory stamped steel radius arms are replaced by the BDS 4-Link system to optimize suspension geometry for improved handling, strength, and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets that mount HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are included to provide the correct lift height and a smooth, predictable ride across various terrains.
Steering Correction
A forged drop pitman arm minimizes steering angle after the lift is installed. A heavy-duty track bar drop bracket keeps the steering geometry in phase through suspension travel while recentering the front axle.
Features
- Heavy-duty 4-Link improves strength, handling, and caster control
- Front high-strength progressive rate Pro-Ride coil springs
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Rear high-strength steel lift block and longer U-bolts
- Brake line brackets included
- Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks
- Clearance for up to 37-inch tires
Specifications
- Lift Height: 6 inches
- 4-Link conversion brackets: high-strength 1/4-inch steel
- Coil springs: full-length, diesel-specific, progressive rate Pro-Ride
- Rear lift: high-strength steel lift block with longer U-bolts
- Transfer case indexing ring: standard 6-bolt (8-bolt option available for Aisin transmission)
- Compatible tire size: up to 37 inches
- Vehicle fitment: 2019–2024 Ram 3500 4WD Diesel
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
- Tools Required: Cut Off Wheel or equivalent, Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment
Important Notes
- Dually with 8-bolt Transmission (Aisin): requires BDS122409 DEF Relocation Kit
- Mega Cabs with 8-bolt Transmission (Aisin): requires BDS122409 DEF Relocation Kit
- Vehicles equipped with a Manual T-case: requires BDS122423 Manual Transfer Case Shifter Extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing): requires BDS122406 Carrier Bearing Drop
- Select rear box kit based on whether or not your Ram has a factory Rear Overload Leaf spring
- Kits come standard with 6-bolt indexing ring. The optional Aisin heavy-duty 6-speed transmission uses a different transfer case mounting bolt pattern (8-bolt). The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
