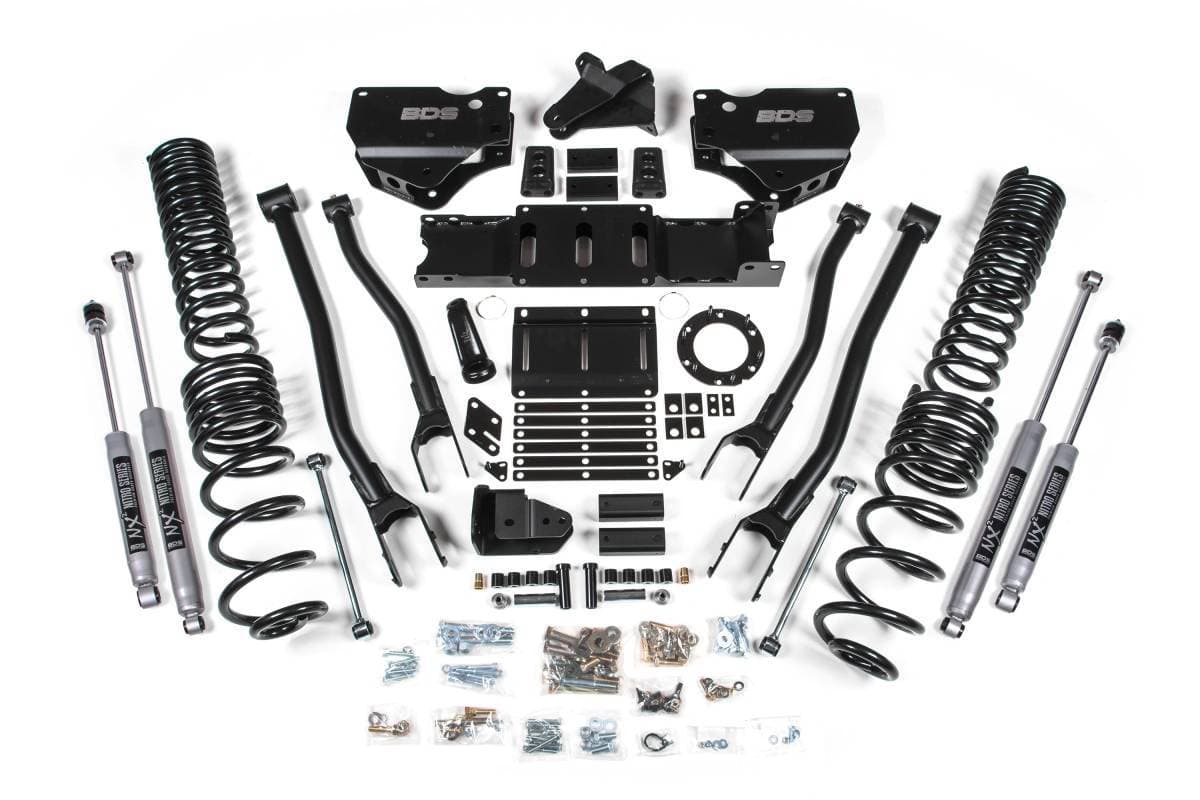

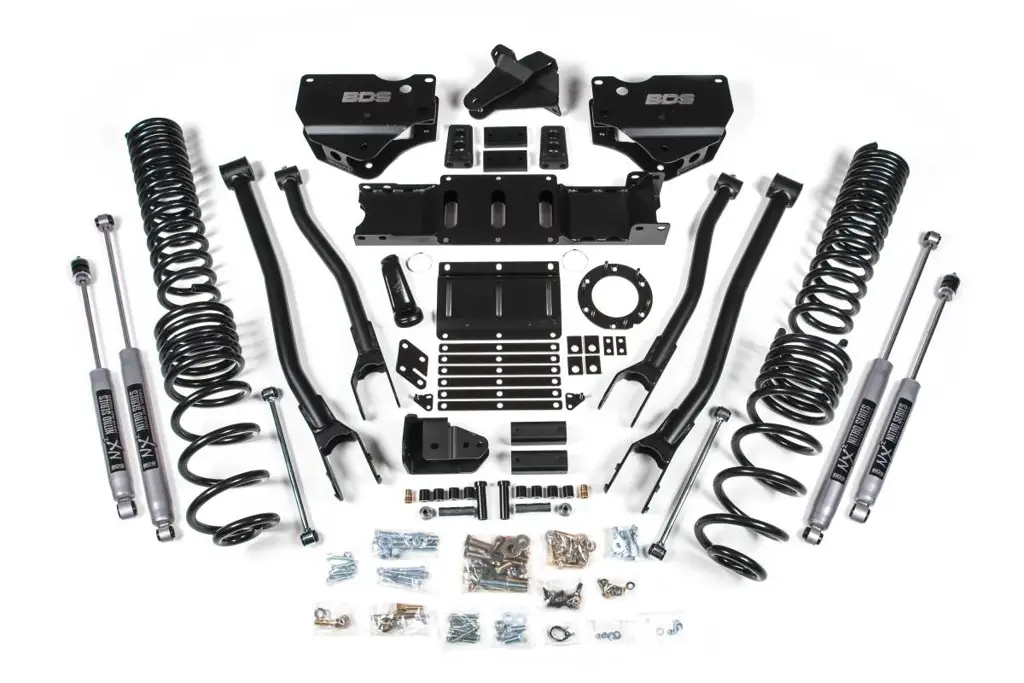

6 Inch Lift Kit w/ 4-Link | Ram 2500 Diesel (2019-2024) 4WD | NX2 Nitro Series Shocks | BDS Suspension

Configured with NX2 Nitro Series shocks. Features a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

BDS Suspension engineered this 6-inch lift kit with a 4-Link conversion for the 2019–2024 RAM 2500 diesel-powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set the vehicle up correctly with clearance for up to 37-inch tires.

Up front, the kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm, track bar bracket for steering correction, bump stops, and brake line brackets. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes progressive-rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of shocks.

4-Link Conversion

This bolt-on upgrade converts the factory-stamped steel radius arms to the BDS 4-Link system, optimizing suspension geometry for better handling while adding strength and stability. High-strength 1/4-inch steel brackets mount HD upper and lower control arms, correcting axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

Full-length, diesel-specific, progressive-rate Pro-Ride coil springs are supplied front and rear to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel with properly sized wire diameters, these direct OE replacement coil springs are engineered for maximum reliability without premature coil bind.

Steering Correction

A forged drop pitman arm minimizes steering angle once lifted, and a heavy-duty track bar drop bracket keeps steering geometry in phase through suspension travel while recentering the front axle.

Features

• Heavy-duty 4-Link arms improve strength, handling, and caster control
• High-strength progressive-rate Pro-Ride coil springs for a smooth ride on any terrain
• Track bar relocation brackets to re-position the axle front and rear
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Choice of NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks

Specifications

• Lift Height: 6 inches
• Tire Clearance: Up to 37 inches
• Vehicle Fitment: 2019–2024 RAM 2500 4WD Diesel
• 4-Link brackets: 1/4-inch high-strength steel
• Coil springs: High-tensile steel, progressive-rate, diesel-specific

Installation

• Estimated Time: 10 hours
• Difficulty: Moderate
• Tools Required: Cut Off Wheel or equivalent, Step Drill Bit, Drill / Bit Set, Pitman Arm Puller, Welding Equipment

Important Notes

• Will NOT fit air-ride equipped models
• Diesel models only
