This configuration retains the factory 2 inch rear blocks combined with new BDS leaf springs to achieve a level stance. Select this option if your truck is equipped with factory 2 inch rear lift blocks to ensure correct u-bolt length.
Overview

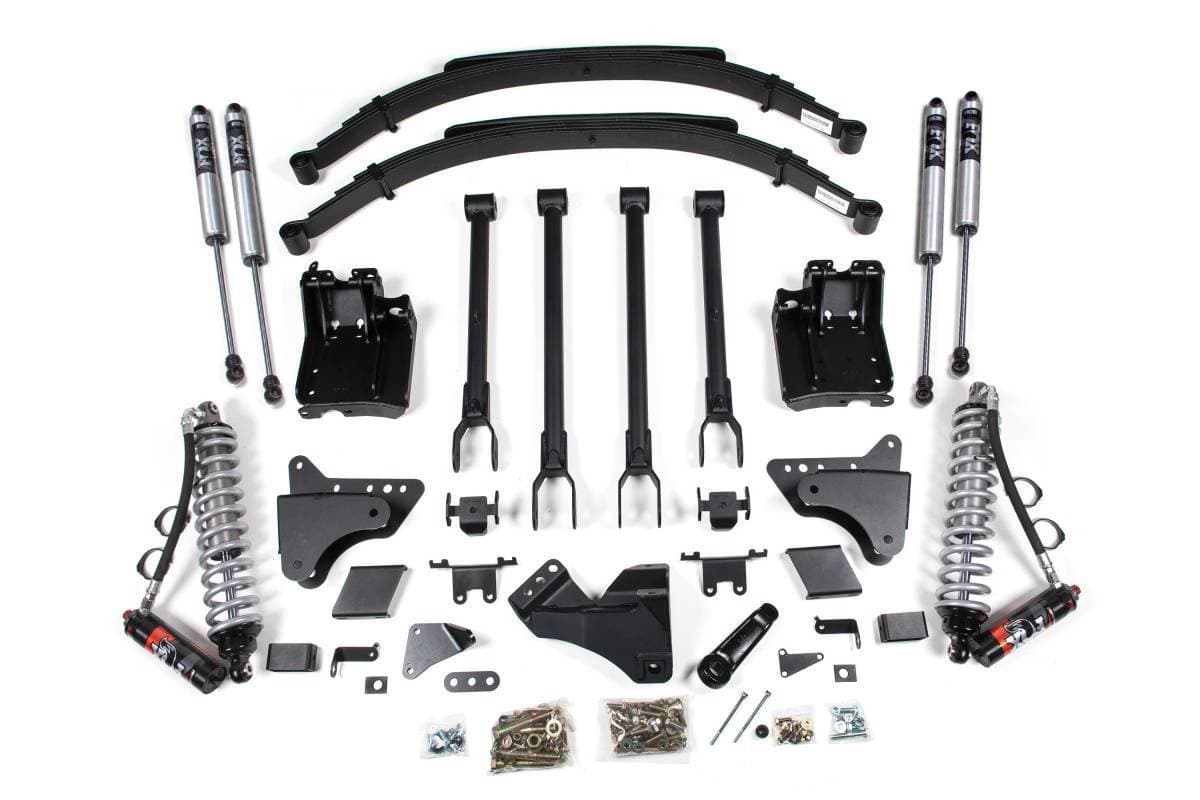

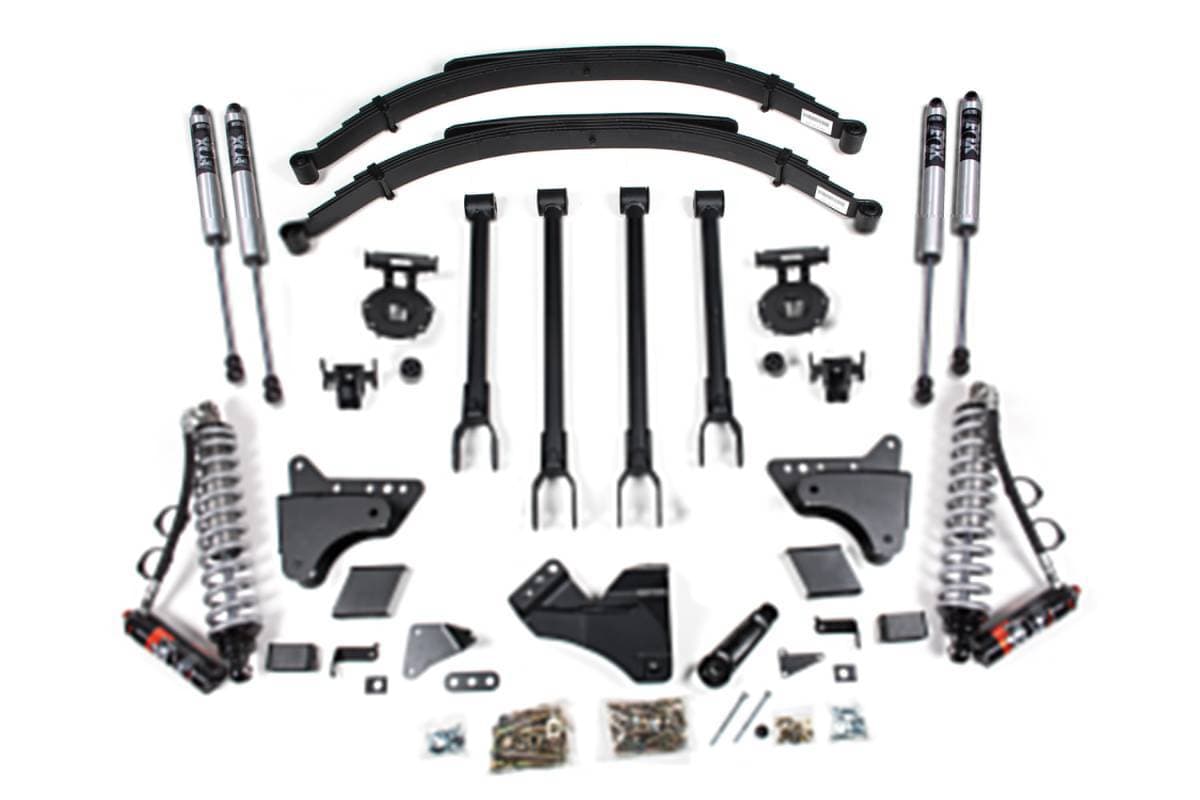

This 6 inch lift kit with 4-Link and FOX 2.5 Performance Elite Coil-Over Conversion is designed for 2011–2016 Ford F250/F350 Super Duty 4WD Diesel trucks. The rear lift system retains the factory rear blocks and adds new BDS leaf springs to achieve a level stance. The leaf spring design operates in three stages: the primary three leafs function with no additional load for everyday ride quality; secondary leafs engage under moderate loads; and a bottom overload is engaged when the truck is fully loaded for maximum hauling capacity. This progressive setup maintains ride quality when unloaded without sacrificing payload capacity.
Features
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for maximum performance
- Eibach coil springs for smooth ride through rough terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength, and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide a level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Installation
- Estimated Time: 8–10 hours
- Difficulty: Difficult
Important Notes
- Front exhaust modification may be required to clear front drive shaft (gas only).
- If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
- Although extremely rare, front driveline vibration may occur.
- If equipped with rear sway bar, #123009 is required.
- U-bolts will not work on dually models.
