Configured with a 3 Inch Rear Block Kit, this option produces a level-to-tail-high appearance at the finished ride height.
Overview

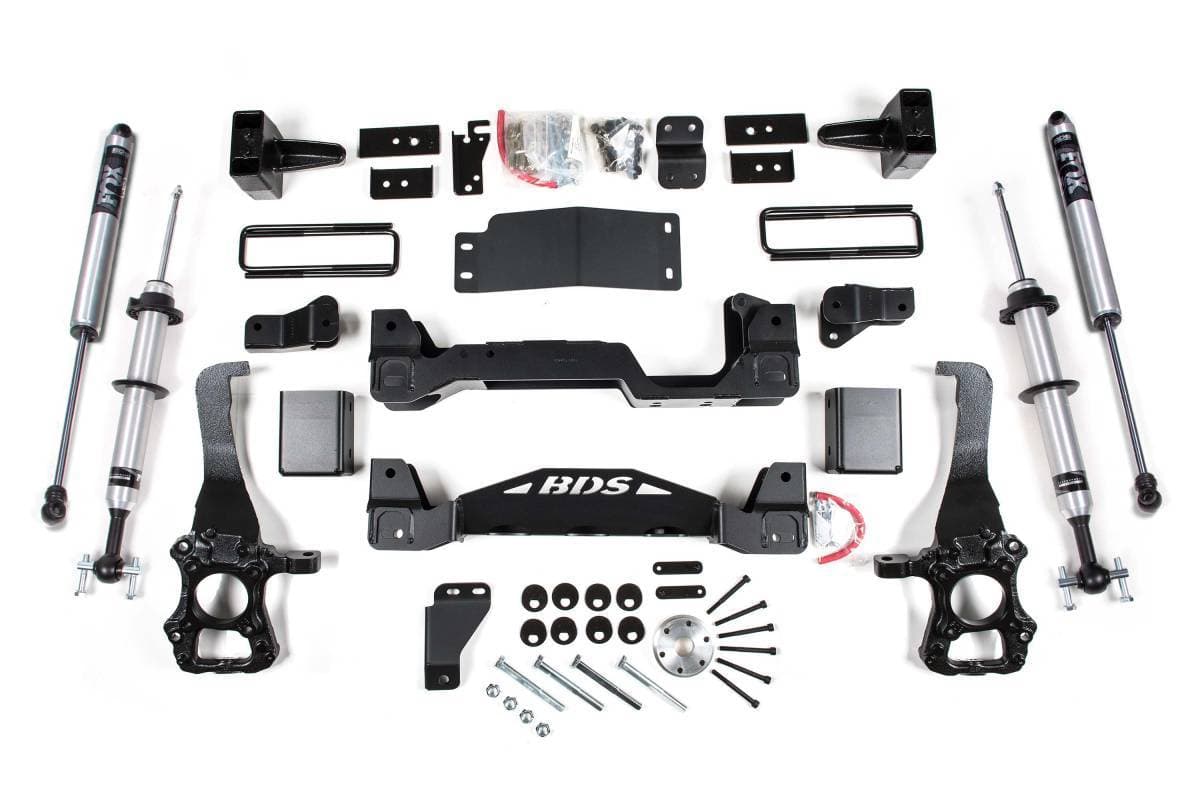

This 6-inch suspension lift kit from BDS Suspension is designed for the 2014 Ford F150 4WD. The kit provides clearance for up to 37-inch tires and addresses suspension and steering geometry at the new ride height. Up front, the kit uses high-arched 1/4-inch thick steel crossmembers, FOX 2.0 Performance Series struts, multi-piece differential relocation brackets, and a skid plate. Steering geometry is corrected with a pair of CNC-machined ductile iron steering knuckles. The kit also includes sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware. In the rear, high-strength cast steel lift blocks and longer u-bolts level the stance, paired with FOX 2.0 Performance Series shocks.
Features
- High clearance crossmembers improve strength and off-road capability
- Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
- Differential skid plate for improved off-road protection
- Rear lift blocks and u-bolts to lift and level the stance
- FOX 2.0 Performance Series shocks for maximum performance on and off-road
Specifications
- Lift height: 6 inches
- Crossmember thickness: 1/4-inch thick laser-cut steel
- Steering knuckles: CNC-machined ductile cast iron
- FOX 2.0 Snap Ring Strut: mono-tube design with internal floating piston (IFP), nitrogen-charged gas chamber, precision impact-extruded 2-inch aluminum body
- Three predetermined preload settings for stance tuning
- Tire clearance: up to 37 inches
Installation
- Estimated Time: 8–10 hours
- Difficulty: Difficult
Important Notes
- Requires frame bracket modification and welding.
- 18" wheels with 5–5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle.
- 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled.
- Stock 20" wheels can be used with up to 305/60-20 tires.
- E-brake bracket required for factory power steps (part #123018).
- Block kits replace factory 1-1/4" block.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
- Will not fit HD models (7 lug).
- This kit is FMVSS No. 126 compliant.
