Rear lift is achieved via a 4-inch cast steel block kit with Add-A-Leaf, providing a level stance front to rear without replacing factory rear leaf springs. Shocks are upgraded to FOX 2.0 Performance Series: featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.
Overview

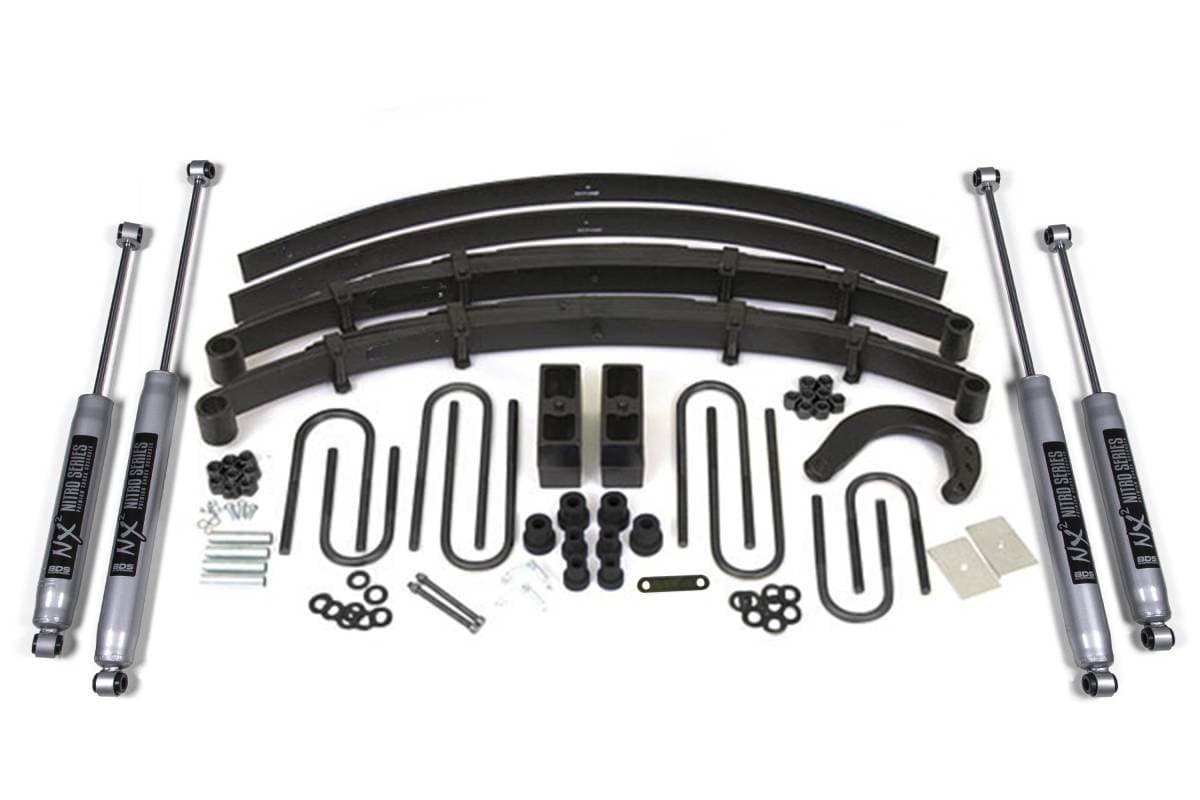

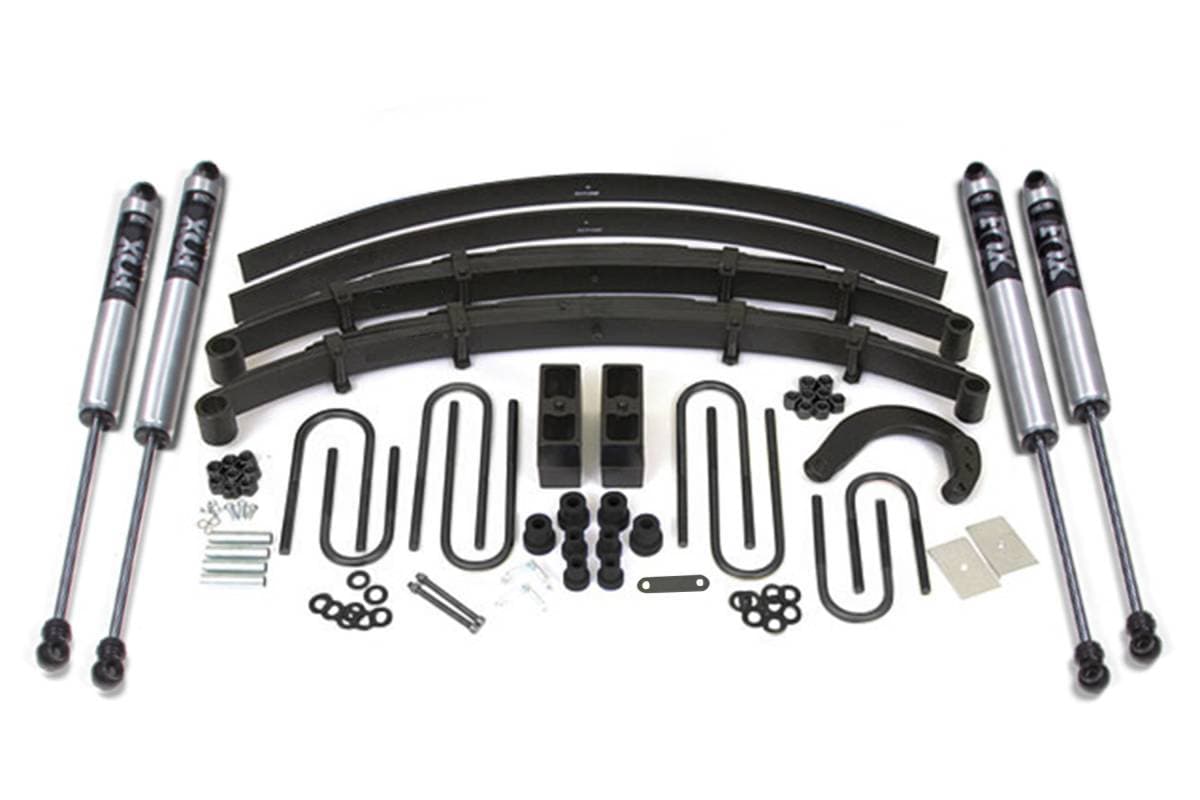

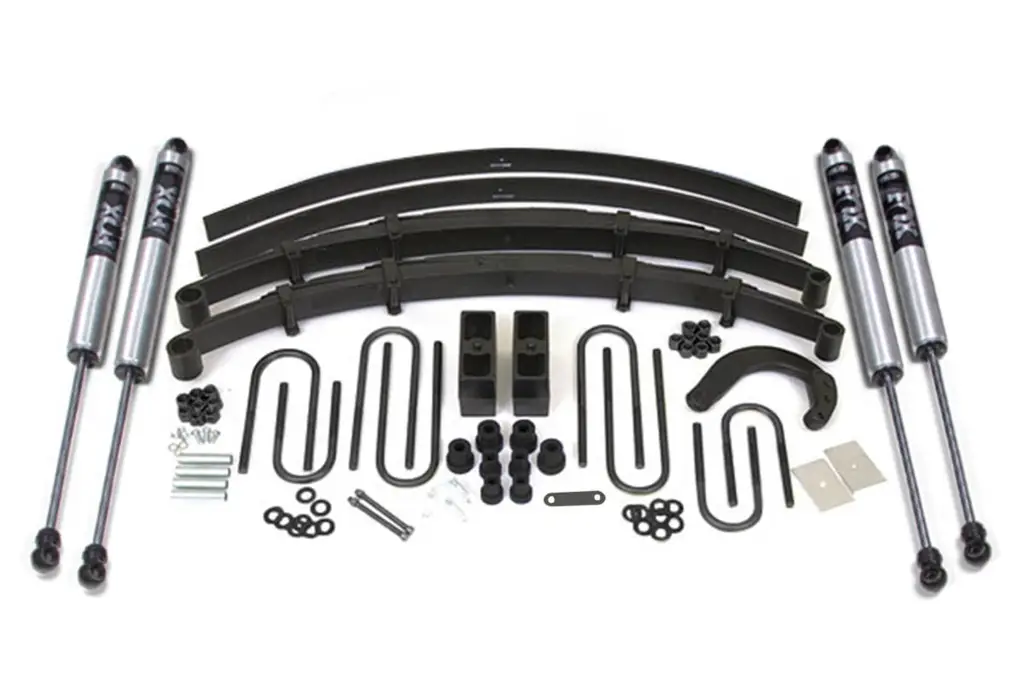

This 6-inch lift kit from BDS Suspension is designed for 1988–1991 Chevy and GMC 3/4 ton Suburbans (4WD), delivering improved stance, performance, and capability with clearance for up to 36-inch tires. Up front, the kit includes Glide-Ride leaf springs, a 4-inch steering arm for steering correction, brake line brackets, and precision-tuned shocks. The rear lift is available in two configurations: a block kit with Add-A-Leaf or full replacement Glide-Ride leaf springs. Shock options include NX2 Nitro Series as standard, with an upgrade path to FOX 2.0 Performance Series shocks.
Features
- 100% bolt-on installation
- Front Glide-Ride leaf springs provide full lift height and increased capacity via an exclusive triple-stage, multi-leaf progressive spring rate design for a smooth ride under varying loads
- 4-inch steering arm maintains proper steering angles for improved handling
- Cast steel blocks and Add-A-Leaf option provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Specifications
- Lift Height: 6 inches
- Tire Clearance: Up to 36 inches
- Front Lift: Glide-Ride leaf springs with 4-inch steering arm and brake line brackets
- Rear Lift: 4-inch block kit with Add-A-Leaf or Glide-Ride replacement leaf springs (see variant options)
- Shocks: NX2 Nitro Series (standard) or FOX 2.0 Performance Series (upgrade)
- NX2 Nitro Series: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8-inch high-flow piston, self-lubricating seals, silver powder coat finish
- FOX 2.0 Performance Series: 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish
- Glide-Ride leaf springs include new center pins and maintain factory payload weight ratings
Installation
- Estimated Time: 6 hours
- Difficulty: Moderate
- Special Tools Required: Ball Joint Separation Tool, Cut-off Tool
Important Notes
- The 3/4 ton commonly came with a factory 56-inch eye-to-eye rear leaf spring; however, some were produced with a 52-inch rear spring. If ordering rear leaf springs, measure your factory rear spring before ordering.
- If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
- Some vehicles came with factory front dual shocks. To replace the factory duals, you must order the additional two auxiliary shocks in the options.
- #001408 comes with OE style rubber bushings installed.
- Exhaust modification may be required to clear the front driveshaft.
