3 Inch Rear Coil Springs — Progressive-rate Pro-Ride coils delivering 3 inches of rear lift to provide a more level stance, with the perfect blend of comfort and performance.
FOX 2.0 Performance Series Rear Shocks — Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving for maximum performance. Long-lasting clear anodized finish. 1-year Manufacturer's Warranty.
Overview

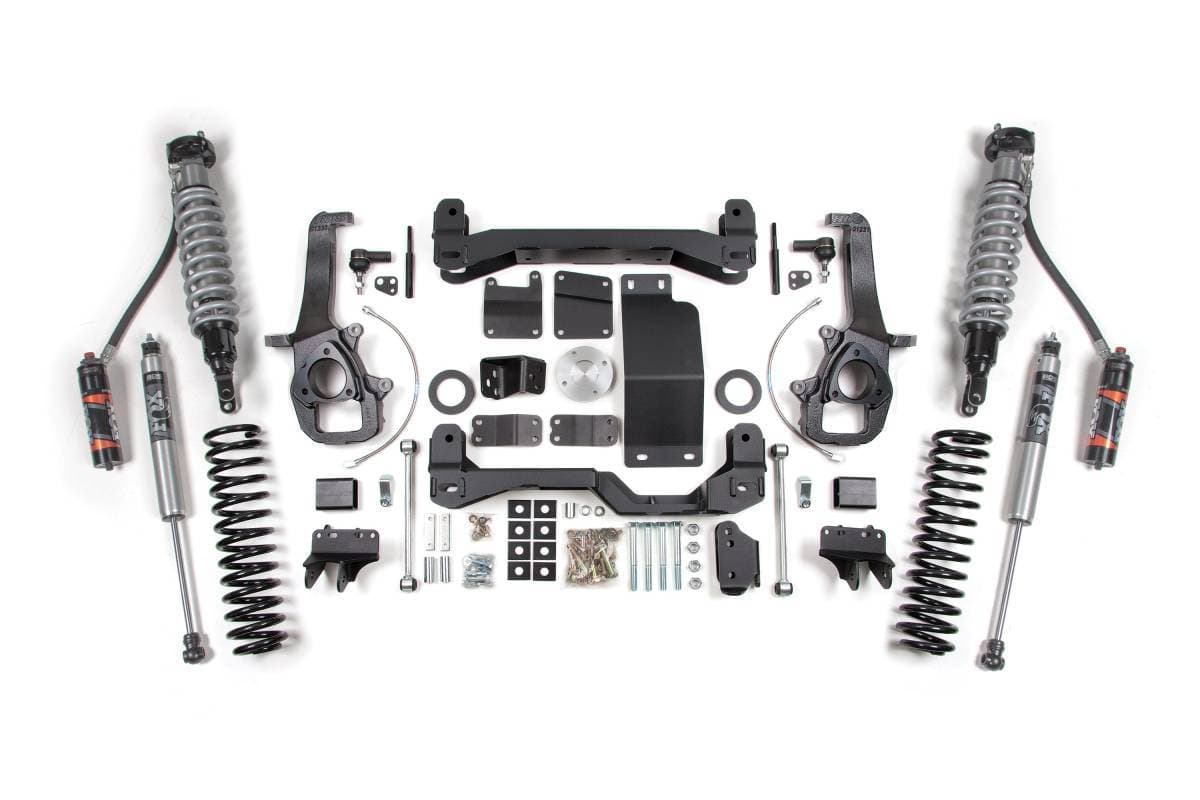

This BDS 6" Coilover Lift Kit is designed for unmatched performance, stance, and strength for the 2012 Ram 1500 4WD. This premium system clears up to 37" tires and replaces factory components with heavy-duty, high-clearance parts built to handle any terrain. Up front, FOX 2.5 Performance Elite Coilovers with DSC provide adjustable damping for ultimate control on- or off-road, complemented by 1/4" steel high-clearance crossmembers, HD skid plates, and CNC-machined ductile iron steering knuckles that maintain proper geometry and ESC compatibility. Out back, progressive-rate Pro-Ride coil springs deliver comfort and control, while relocation brackets correct pinion and axle geometry. Rear shock options include FOX 2.5 Performance Elite or FOX 2.0 Performance Series.
Features
- High-clearance crossmember design maximizes ground clearance
- CNC-machined ductile iron steering knuckles maintain proper geometry and ESC system compliance
- HD skid plate system for improved off-road protection
- Multipoint differential relocation brackets secure the front axle and improve CV angles
- Progressive-rate Pro-Ride rear coil springs for comfort and control
- Rear relocation brackets correct pinion and axle geometry
- Choice of FOX 2.0 Performance Series or FOX 2.5 Performance Elite rear shocks
- Factory Protection Plus drivetrain warranty included
- FMVSS No. 126 Compliant
- Clears up to 37" tires
Installation
- Estimated Time: 10 hours
- Difficulty: Moderate
- Special Tools Required: Cut Off Wheel or equivalent, Reciprocating Saw
Important Notes
- The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
- Not recommended for AWD models.
- Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be reinstalled with a factory tire.
- Will not fit adjustable air suspension equipped models.
- This kit will bolt on Eco-Diesel models but will require an aftermarket front drive shaft.
- TRX models will achieve approximately 1" of additional lift. This lift is not recommended for use on TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider the BDS 4" lift system for approximately 5" of lift, or replace the TRX struts with standard struts for use with this system.
- This kit is FMVSS No. 126 Compliant.
