This kit is configured with Extended Cab-specific Pro-Ride coil springs, tuned to the correct lift height and load characteristics for Extended Cab applications of the 1980–1996 Ford F100/F150 2WD.
Overview

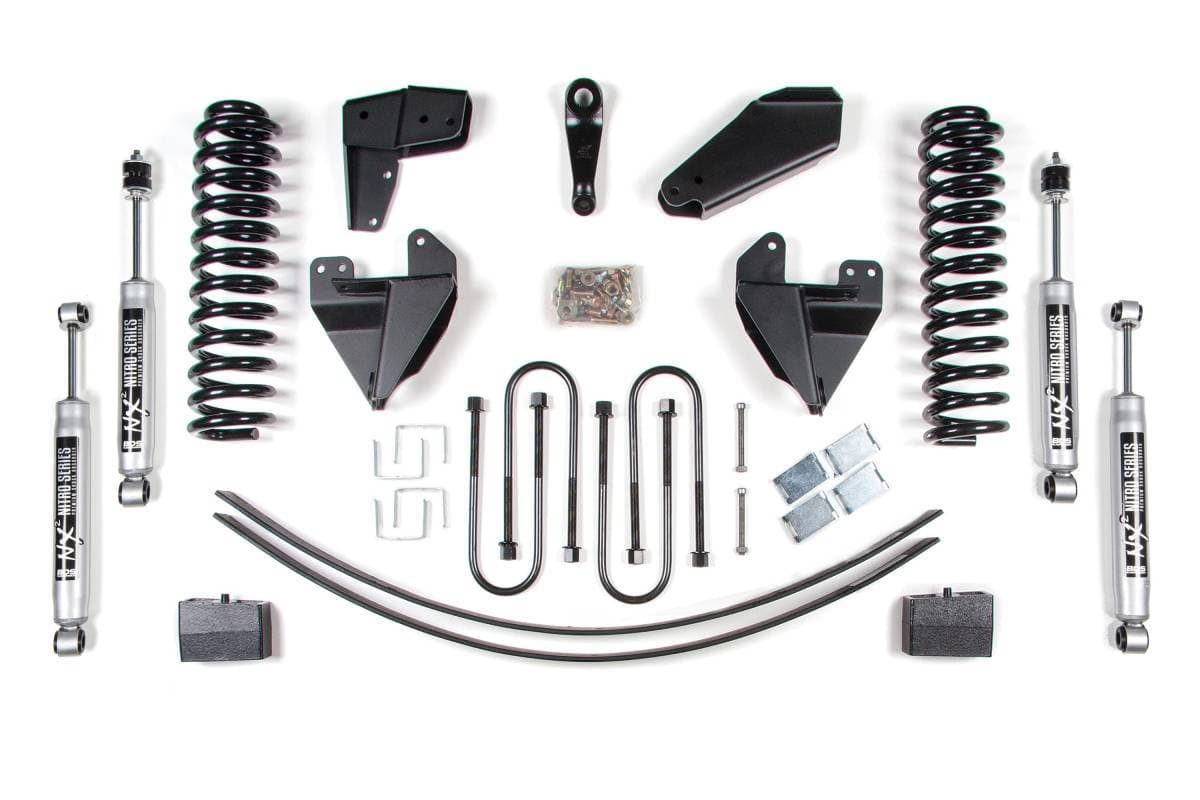

This 6-inch suspension lift kit by BDS Suspension is designed for the 1980–1983 Ford F100 and 1980–1996 Ford F150 2WD truck. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes vehicle-specific Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, a forged pitman arm for steering correction, and precision-tuned NX2 nitrogen-charged shocks. The rear of the kit utilizes a high-strength lift block, longer U-bolts, and a matching set of NX2 Nitro shocks.
Features
- Easy, bolt-on installation
- Pro-Ride dual-rate coil springs for smooth performance across various terrains
- Heavy-duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide a level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control
Specifications
- Lift Height: 6 inches
- Tire Clearance: Up to 35 inches
- Front Components: Pro-Ride coil springs, axle pivot relocation brackets, radius arm drop brackets, forged pitman arm, NX2 Nitro shocks
- Rear Components: High-strength lift block, extended U-bolts, NX2 Nitro shocks
- Coil Spring Type: Full-length, dual-rate, vehicle-specific Pro-Ride
Installation
- Estimated Time: 8 hours
- Difficulty: Difficult
- Tools Required: Air Hammer (Recommended), Jack / Jack Stands, Pitman Arm Puller
Important Notes
- Front end alignment required. Alignment cams may be required. See page 120.
- U-bolts in 2WD rear kits will need to be shortened.
- #123401 recommended if equipped with a front anti-sway bar.
- Ford produced 3 different styles of sway bar systems between 1980 and 1996. In extremely rare cases, modification may be required.
- Extended front brake lines required.
- Does not fit F150 models without power steering.
