Overview

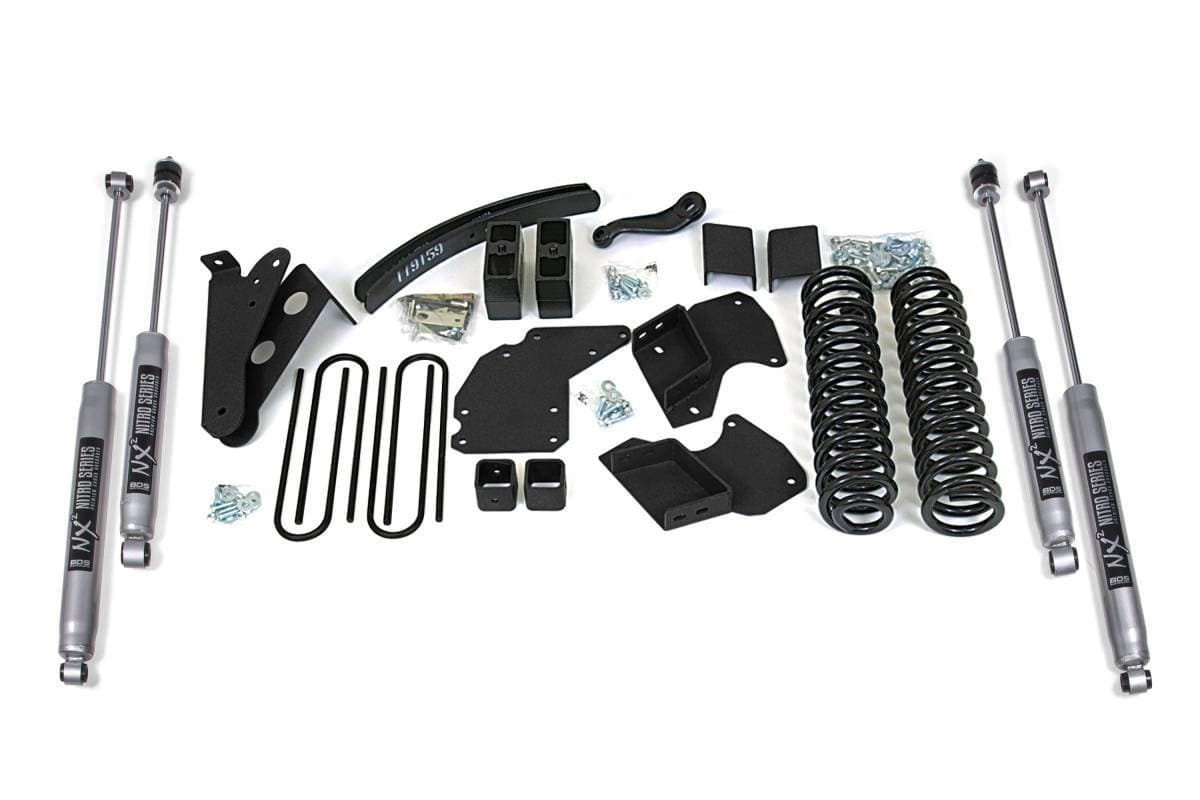

Improve the ride and stance of your 1982–1991 Ford Bronco II 4WD with this suspension lift kit from BDS Suspension. Designed to improve stance, performance, and off-road capability, the kit includes everything needed to run up to 33" tires. Up front, the kit features Pro-Ride coil springs, heavy duty axle pivot brackets, radius arm drop brackets, a forged pitman arm for steering correction, bump stop extensions, and precision-tuned NX2 nitrogen charged shocks. In the rear, a high-strength lift block, longer u-bolts, and a matching set of NX2 Nitro shocks complete the installation.
Features
- Easy, bolt-on installation
- Pro-Ride dual rate coil springs for smooth, predictable ride across various terrains
- Heavy duty steel drop brackets for proper suspension geometry
- Cast steel blocks provide a level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for improved control
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4"
- Rear Lift Method: Block
- Rear Lift Height: 3–5"
- Overall Lift Height: 4–5.5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
- Ball joint alignment cam will be required for alignment; these are available in the options section or from your local alignment shop.
- Extra cab models may not achieve stated height.
- Models equipped with a 2-piece driveshaft will require the carrier bearing crossmember to be lowered.
- Bronco II 1985–90 models with CV joint type drive shaft must be converted to an exposed joint shaft.
- Vehicles equipped with the factory STX package will not achieve stated height.
- The dual steering stabilizer listed in the accessories will not fit applications with a factory front sway bar.
