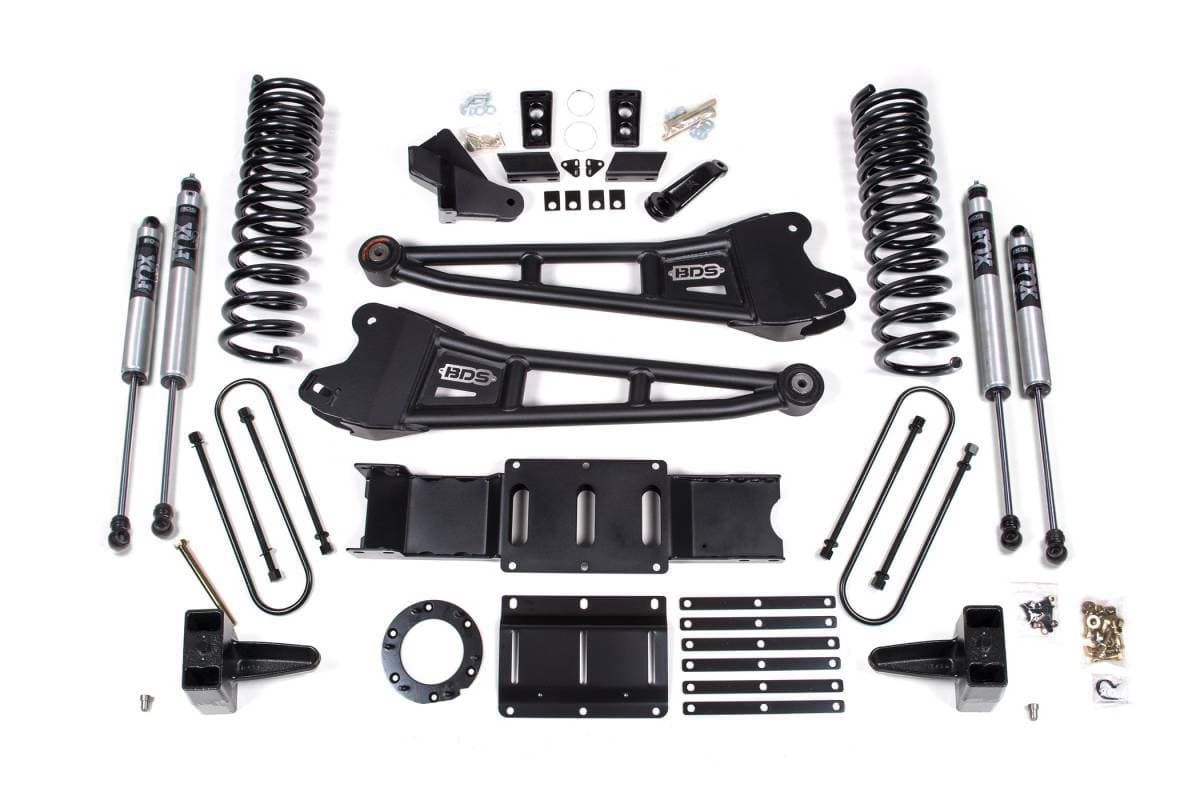

Select this configuration for Ram 3500 trucks without factory rear overload leaf springs, paired with FOX 2.0 Performance Series shocks front and rear. FOX 2.0 Performance Series shocks feature a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving for maximum performance.
Overview

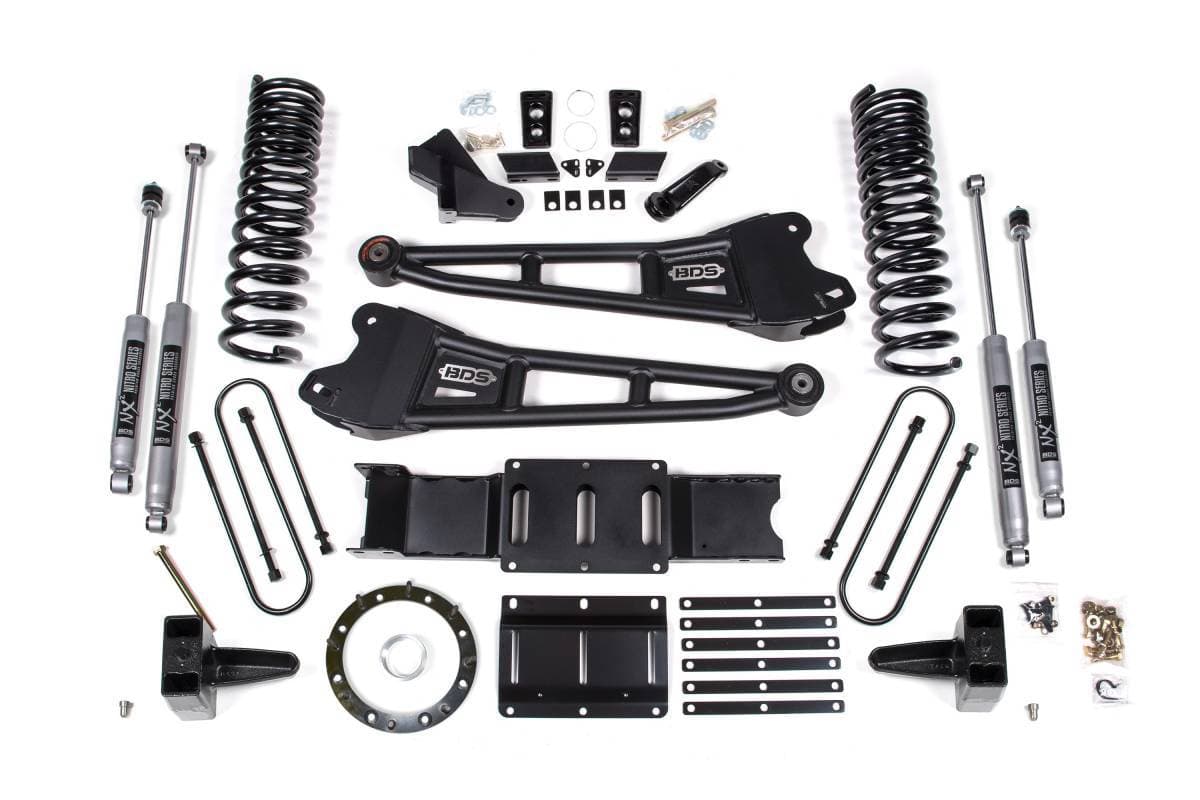

This 5.5-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 4WD gas-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength fabricated lift block, longer U-bolts, and a matching set of shocks.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- Gas-specific progressive rate Pro-Ride coil springs for a smooth, predictable ride on any terrain
- Front track bar relocation bracket to re-position the front axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Choice of NX2 Nitro Series or FOX Performance Series nitrogen-charged shocks for improved ride and off-road performance
- Provides clearance for up to 37-inch tires
- Rear kit includes high-strength fabricated lift block and longer U-bolts
Specifications
- Lift Height: 5.5 inches
- Vehicle Fitment: 2019–2024 Ram 3500 4WD Gas
- Radius Arms: High-strength tubular construction with OE-style rubber bushing at frame mount and caster adjustment
- Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride coil springs
- Rear Lift: High-strength fabricated lift block with longer U-bolts
- Includes transfer case indexing ring and HD transmission crossmember
- Includes brake line brackets
- Shock options: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
- A DEF tank relocation bracket (part# 122409) is required for this kit to work with Dually or Mega Cab models with Aisin Transmissions (8-bolt).
- If equipped with a manual transfer case, BDS122422 is required.
- Select the rear box kit based on whether your Ram has factory rear overload leaf springs.
