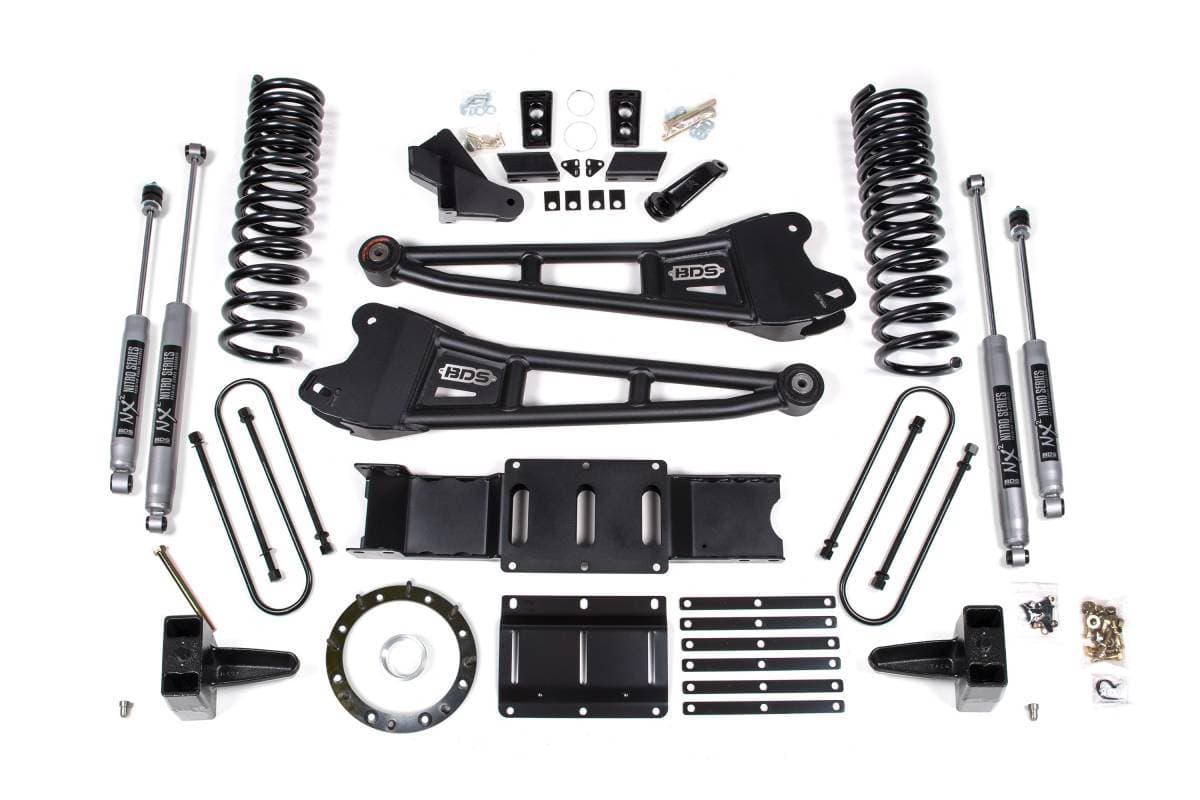

5.5 Inch Radius Arm Lift Kit | Ram 3500 4WD Gas (2019-2024) | w/ Factory Rear Overload Leaf | NX2 Nitro Series | BDS Suspension

Select this configuration for Ram 3500 trucks with factory rear overload leaf springs, paired with NX2 Nitro Series shocks front and rear. NX2 Nitro Series shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

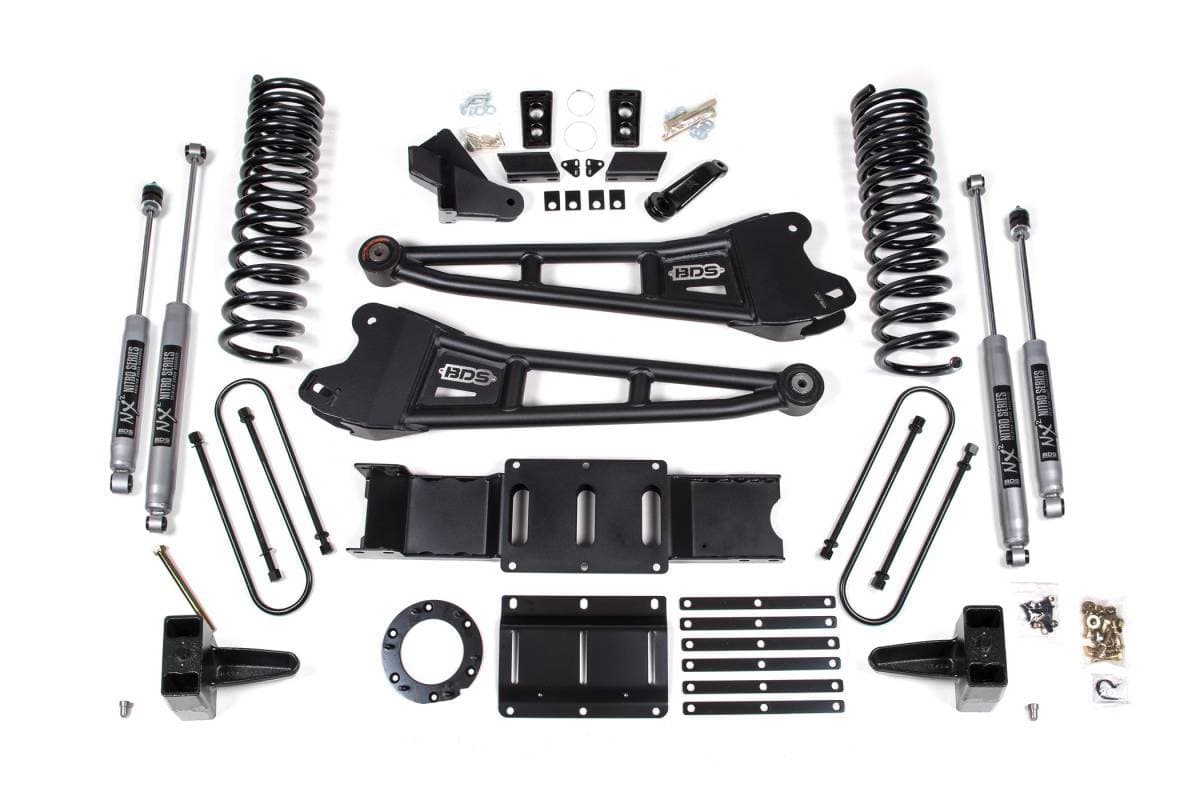

This 5.5-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 4WD gas-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength fabricated lift block, longer U-bolts, and a matching set of shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• Gas-specific progressive rate Pro-Ride coil springs for a smooth, predictable ride on any terrain
• Front track bar relocation bracket to re-position the front axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Choice of NX2 Nitro Series or FOX Performance Series nitrogen-charged shocks for improved ride and off-road performance
• Provides clearance for up to 37-inch tires
• Rear kit includes high-strength fabricated lift block and longer U-bolts

Specifications

• Lift Height: 5.5 inches
• Vehicle Fitment: 2019–2024 Ram 3500 4WD Gas
• Radius Arms: High-strength tubular construction with OE-style rubber bushing at frame mount and caster adjustment
• Coil Springs: Full-length, gas-specific, progressive rate Pro-Ride coil springs
• Rear Lift: High-strength fabricated lift block with longer U-bolts
• Includes transfer case indexing ring and HD transmission crossmember
• Includes brake line brackets
• Shock options: NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite

Installation

• Estimated Time: 8–10 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
• A DEF tank relocation bracket (part# 122409) is required for this kit to work with Dually or Mega Cab models with Aisin Transmissions (8-bolt).
• If equipped with a manual transfer case, BDS122422 is required.
• Select the rear box kit based on whether your Ram has factory rear overload leaf springs.
