4 Inch Lift Kit w/ Radius Arms | Ram 3500 (2019-2024) 4WD Gas | w/ Factory Rear Overload | NX2 Nitro Series | BDS Suspension

Configured for trucks with the factory rear overload leaf spring. Equipped with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and silver powder coat finish.

Overview

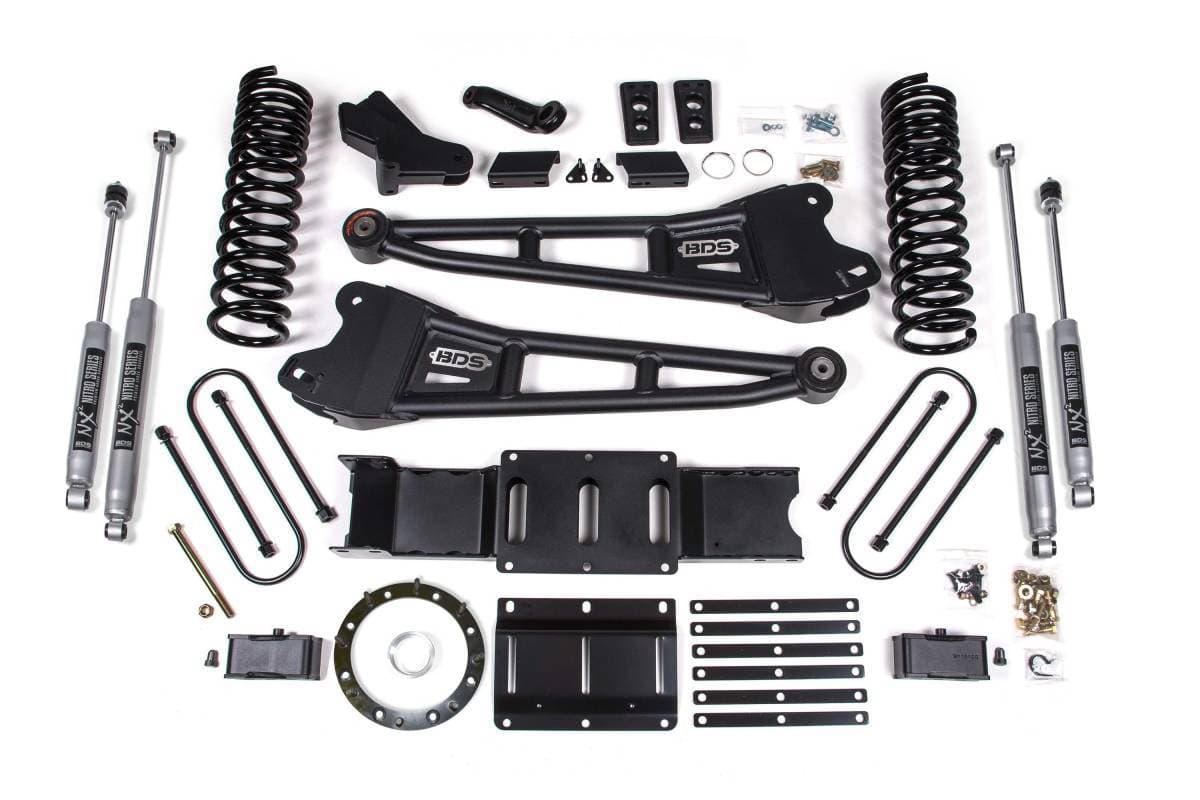

This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 4WD gas-powered trucks. The kit provides clearance for up to 37-inch tires and includes all components necessary for a complete front and rear lift. Up front, the kit features gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation hardware, and brake line brackets. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength fabricated lift block, longer U-bolts, and a matched set of shocks. Precision-tuned NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks are available.

HD Radius Arms

In place of the factory stamped steel radius arms, BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights, along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes the steering angle once lifted, paired with a heavy-duty track bar drop bracket to keep steering geometry in phase through suspension travel while recentering the front axle.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• Front high-strength progressive rate Pro-Ride coil springs
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
• Rear high-strength fabricated lift block with longer U-bolts
• Compatible with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks
• Fitment for up to 37-inch tires

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2019–2024 Ram 3500 4WD Gas
• Rear kit selection based on factory rear overload leaf spring presence
• Includes brake line brackets
• Includes transfer case indexing ring and HD transmission crossmember

Installation

• Estimated Time: 8–10 hours
• Difficulty: Moderate
• Special Tools Required: Pitman Arm Puller

Important Notes

• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
• A DEF tank relocation bracket (BDS122409) is required for this kit to work with Dually or Mega Cab models with Aisin Transmissions (8-bolt).
• Vehicles equipped with a Manual T-case require BDS122422 Manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop.
