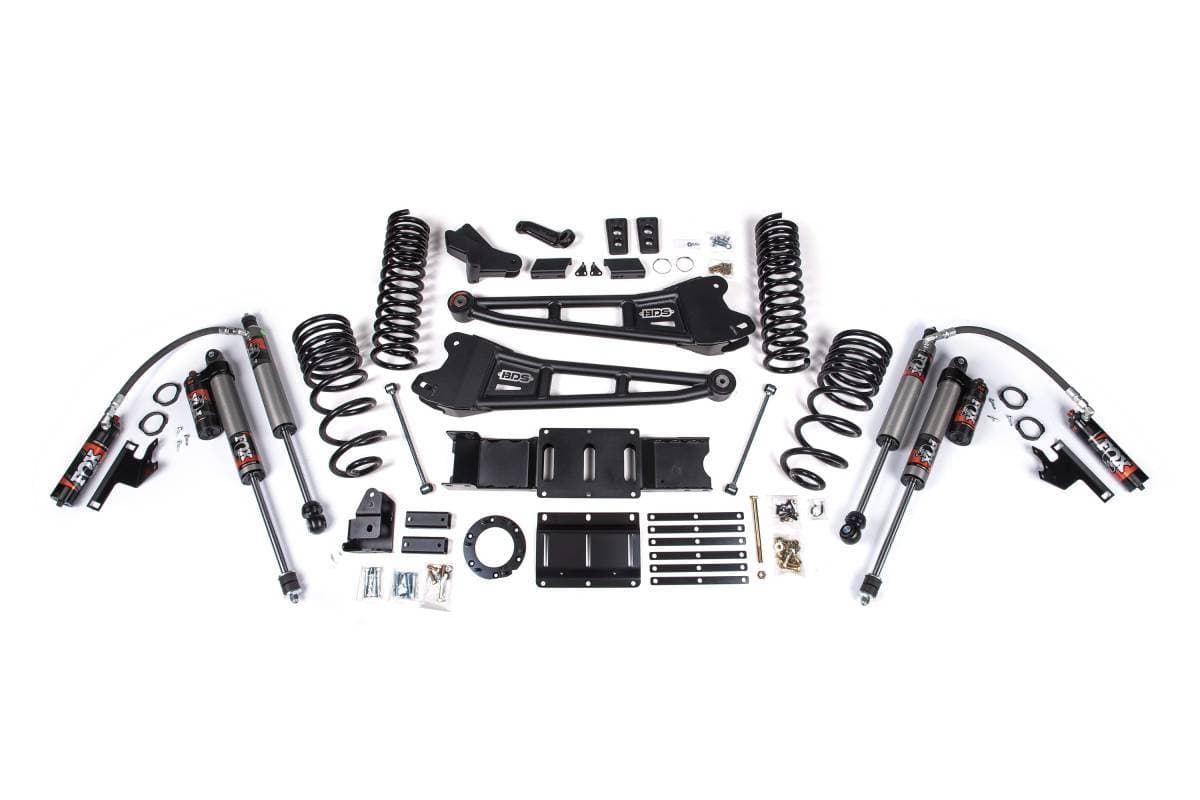

Configured with FOX 2.5 Performance Elite shocks featuring a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir design that separates shock oil from high-pressure nitrogen, and a DSC (Dual Speed Compression Adjuster) standard. Fully serviceable with application-specific valving and CNC machined 6061-T6 aluminum mounting ends. Long-lasting clear anodized finish. 1-year Manufacturer's Warranty.
Overview

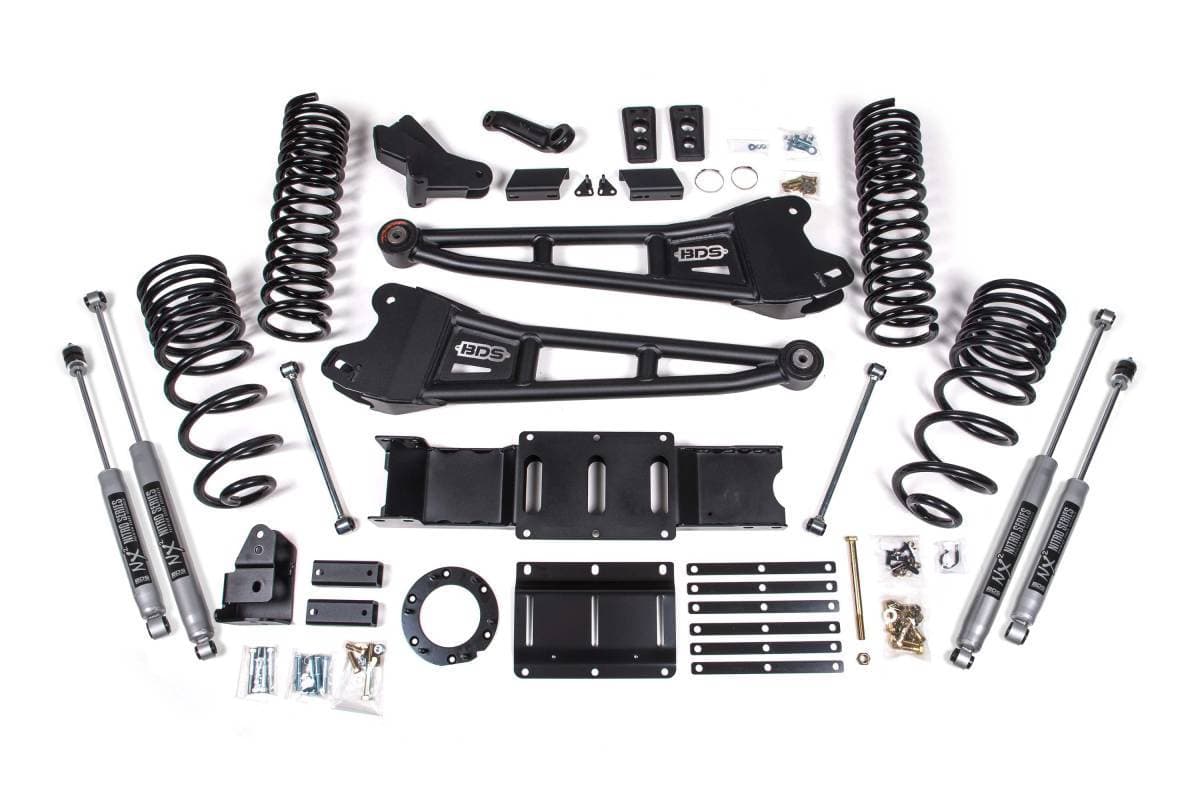

This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 2500 4WD diesel trucks. The kit improves stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit utilizes progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of shocks.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- High-strength progressive rate Pro-Ride coil springs for improved ride on any terrain
- Track bar relocation brackets to re-position front and rear axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Provides clearance for up to 35-inch tires
- Includes brake line brackets
- Bump stop extensions included
Specifications
- Lift Height: 4 inches
- Vehicle Fitment: 2019–2024 Ram 2500 4WD Diesel
- Radius Arms: High-strength tubular steel, factory mounting location, caster adjustable, OE-style rubber bushing at frame mount
- Coil Springs: Full-length, diesel-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter
- Includes HD transmission crossmember and transfer case indexing ring
- Rear: Progressive rate Pro-Ride coil springs, track bar relocation bracket, bump stop extensions, sway bar links
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Will NOT fit air-ride equipped models
- Diesel models only
