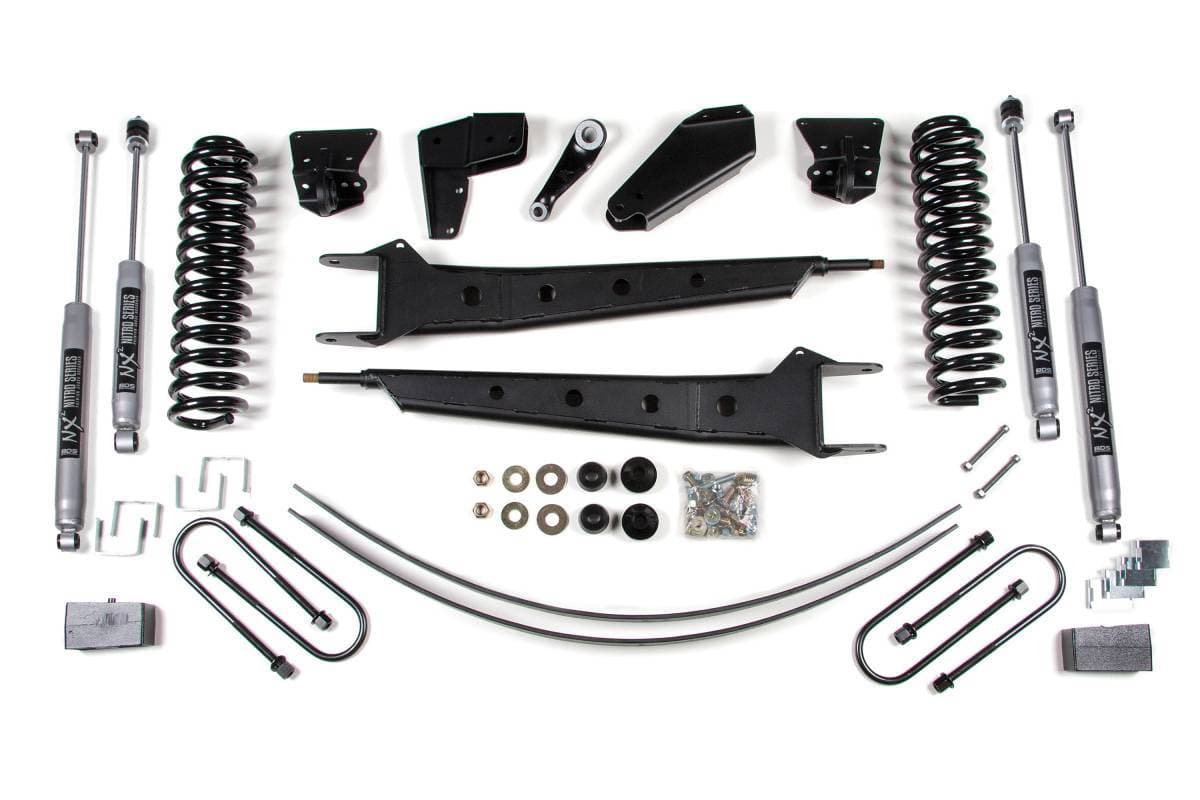

This configuration includes a cast iron lift block kit plus an Add-A-Leaf for the rear. The add-a-leaf helps freshen up old, worn-out factory leaf springs while the cast iron block provides maximum strength with correct pinion angle. Includes new center pins.
Overview

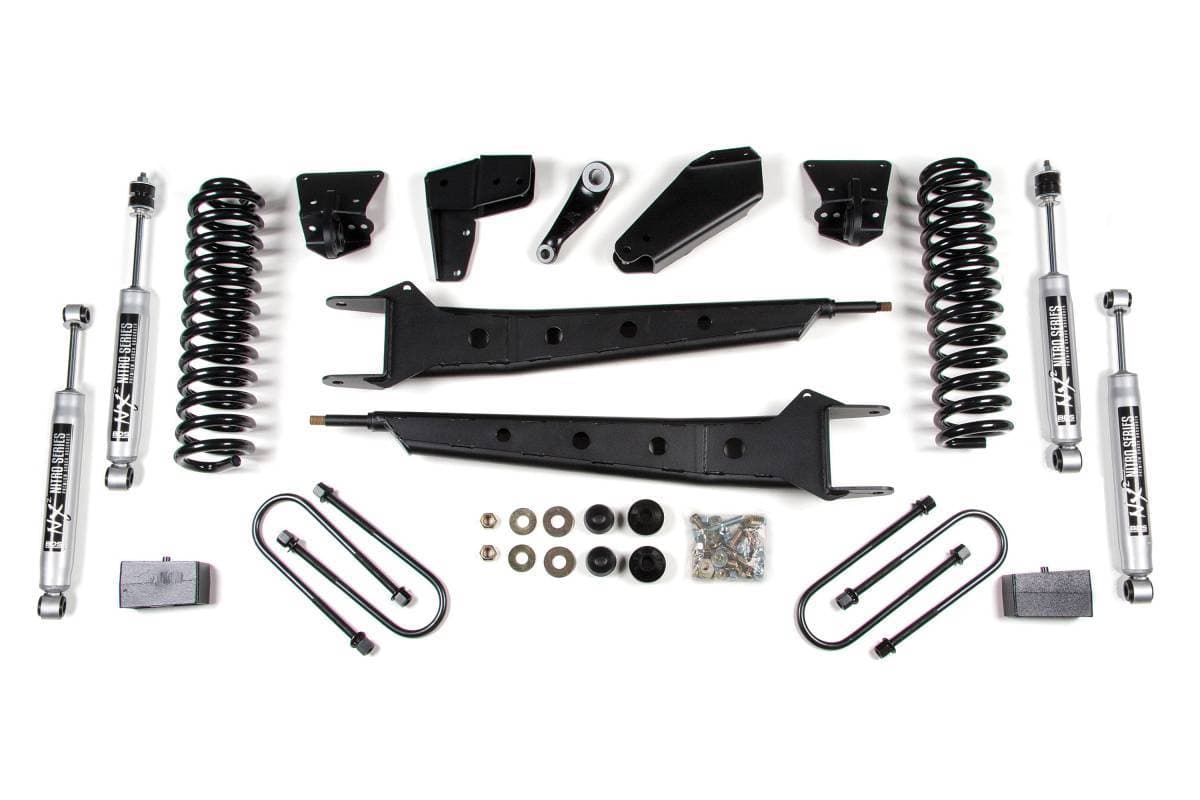

This 4-inch suspension lift kit with extended radius arms is designed for 1980–1996 Ford Bronco full-size 4WD trucks. The kit improves stance, performance, and off-road capability, providing clearance for up to 33-inch tires. Up front, the kit includes Pro-Ride coil springs, axle pivot relocation brackets, extended tubular radius arms, radius arm drop mounts, a forged pitman arm for steering correction, and precision-tuned NX2 nitrogen charged shocks. In the rear, the kit utilizes a high-strength lift block, longer U-bolts, and a matching set of NX2 Nitro shocks. The rear configuration varies by selected option.
Features
- Bolt-on installation
- Pro-Ride dual-rate coil springs for smooth performance across various terrains
- Extended high-strength tubular radius arms reduce caster change through wheel travel for improved steering control on and off road
- Heavy-duty steel drop brackets for proper suspension geometry
- Forged pitman arm for steering correction
- NX2 Nitro shocks with vehicle-specific valving for improved control
- Cast steel rear blocks provide a level stance from front to rear
Specifications
- Lift Height: 4 inches
- Tire Clearance: Up to 33 inches
- Front: Pro-Ride coil springs, extended tubular radius arms, radius arm drop mounts, axle pivot relocation brackets, forged pitman arm, NX2 Nitro shocks
- Rear: High-strength lift block, longer U-bolts, NX2 Nitro shocks (rear lift configuration varies by selected option)
- Compatible with: 1980–1996 Ford Bronco Full Size 4WD
Installation
- Estimated Time: 6 hours
- Difficulty: Moderate
- Tools Required: Air Hammer (Recommended), Drill / Bit Set, Jack / Jack Stands, Pitman Arm Puller
Important Notes
- If your vehicle is equipped with a front anti-sway bar, you will need part #123401, available in the options.
- Does not fit Broncos without power steering.
- Front alignment cams (available in accessories) may be required for alignment.
- Extended brake lines are required for all 4–6 inch lift systems.
