Configured with NX2 Nitro Series shocks front and rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.
Overview

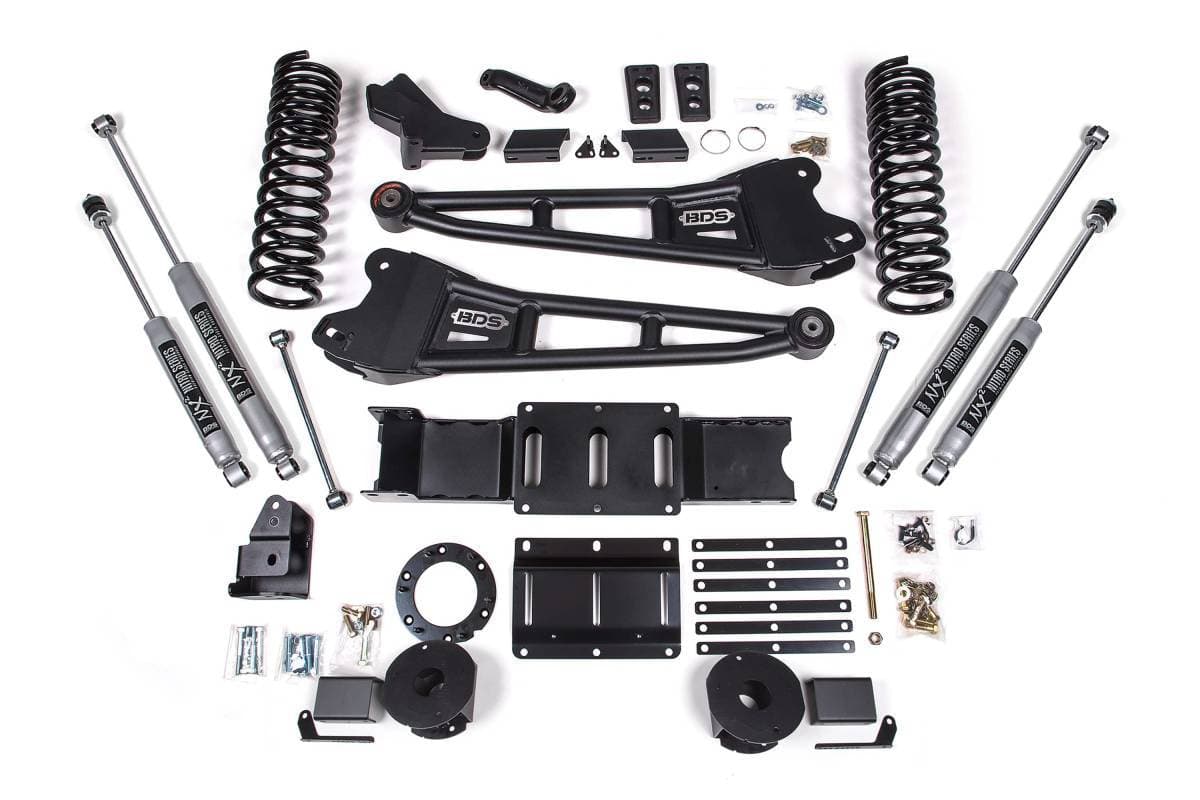

This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 2500 diesel-powered trucks equipped with the factory rear air ride system. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty tubular radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation hardware, brake line brackets, and precision-tuned shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. The rear of the kit utilizes heavy-duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, and a matched set of shocks.
Features
- Heavy-duty tubular radius arms for improved strength, handling, and caster control
- High-strength progressive rate Pro-Ride coil springs — diesel-specific, full-length design for correct lift height and predictable ride
- Track bar relocation brackets to re-position the front and rear axles
- Forged drop pitman arm to correct steering angles after lift
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- Heavy-duty rear air bag spacers compatible with factory rear air ride system
- Bump stop extensions and rear sway bar links included
- Choice of BDS NX2 Nitro Series or FOX 2.0 Performance Series shocks
Specifications
- Lift Height: 4 inches
- Tire Clearance: Up to 35 inches
- Radius Arms: High-strength tubular construction, factory mounting location, caster adjustable, OE-style rubber bushing at frame mount
- Coil Springs: Full-length, progressive rate, diesel-specific, manufactured from high tensile steel with properly sized wire diameter
- Rear Suspension: Compatible with OE factory rear air ride equipped trucks only
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Fits OE equipped air ride systems only.
