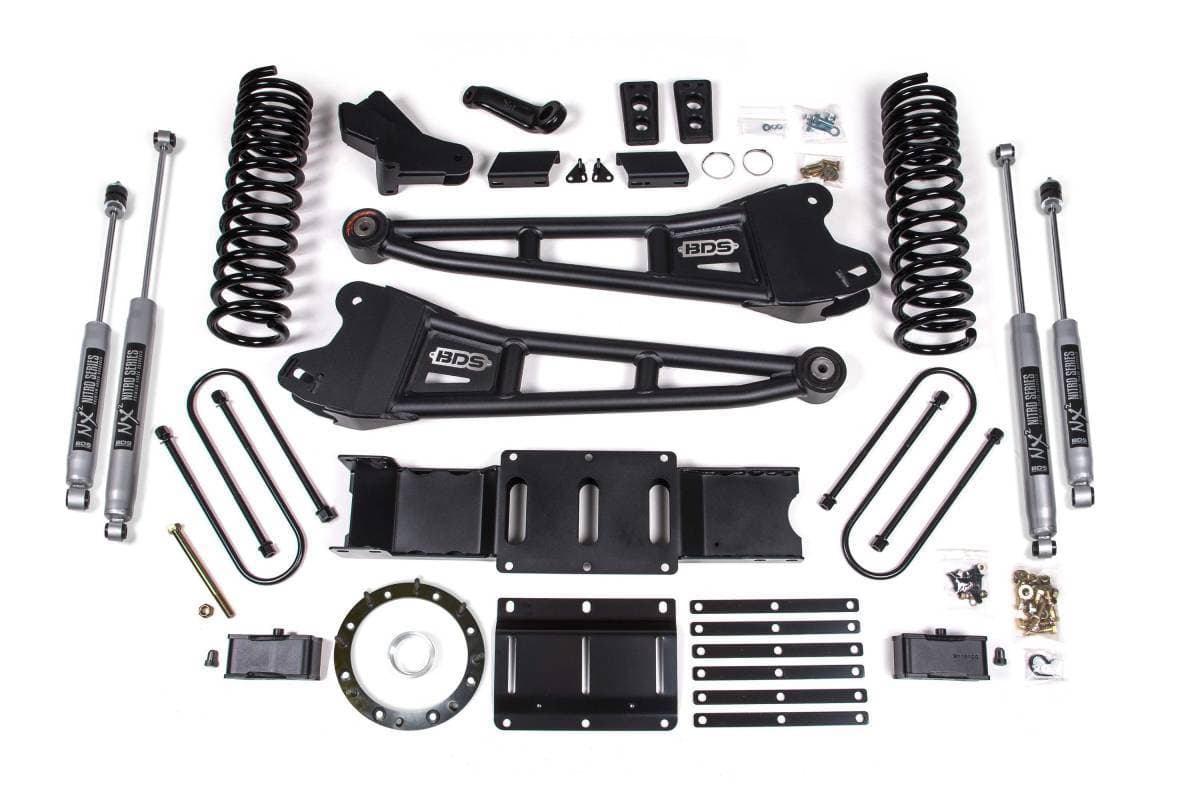

Configured without factory rear overload leaf, with a 6-bolt indexing ring and NX2 Nitro Series shocks front and rear. NX2 shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.
Overview
This 4-inch radius arm lift kit from BDS Suspension is designed for 2019–2024 Ram 3500 4WD diesel-powered trucks, providing improved stance, performance, and capability with clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, and brake line brackets, along with precision-tuned nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are supplied to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses a high-strength fabricated 2-inch lift block, longer U-bolts, and a matching set of rear shocks.
Features
- Heavy-duty tubular radius arms improve strength, handling, and caster control
- Diesel-specific progressive rate Pro-Ride coil springs for front lift and ride quality across various terrains
- Front track bar relocation bracket to re-center the front axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts
- 2-inch rear lift block (without overload) with longer U-bolts
- Available with NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite shocks front and rear
Specifications
- Front lift height: 4 inches
- Rear lift height: 2 inches (via fabricated lift block)
- Maximum tire clearance: up to 35 inches
- Radius arms: high-strength tubular construction, factory mounting location, OE-style rubber bushing at frame mount, caster adjustable
- Coil springs: full-length, diesel-specific, progressive rate Pro-Ride design
- Indexing ring: available in 6-bolt (standard) or 8-bolt (Aisin transmission) configurations
- 8-bolt kit includes internal shaft seal extension and new shaft seal
- Rear lift block: high-strength fabricated steel, 2-inch height, without overload leaf
Installation
- Estimated Time: 8–10 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- A DEF tank relocation bracket (part# 122409) is required for this kit to work with Dually or Mega Cab models with Aisin Transmissions (8-bolt).
- Mega Cabs with 8-bolt Transmission (Aisin) require BDS122409 DEF Relocation Kit.
- Vehicles equipped with a Manual T-case require BDS122423 Manual transfer case shifter extension.
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier Bearing Drop.
