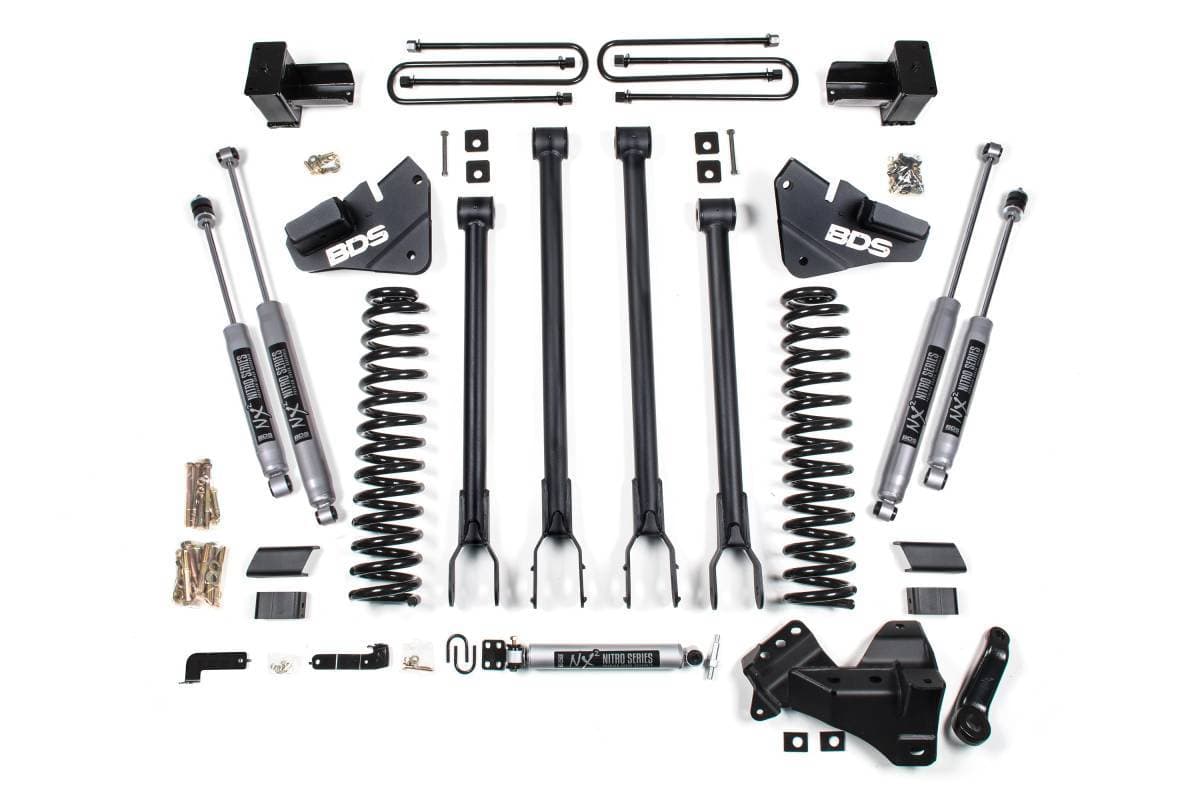

4 Inch Lift Kit w/ 4-Link | Ford F350 Super Duty DRW 4WD Diesel (2017-2019) | NX2 Nitro Series Shocks | BDS Suspension

Configured with NX2 Nitro Series shocks front and rear. NX2 Nitro shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

This 4-inch lift kit with 4-Link conversion from BDS Suspension is designed for 2017–2019 Ford F350 Dually (DRW) Super Duty diesel-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 37-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, and brake line brackets. Precision tuned shocks are included front and rear, with options available in NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite.

4-Link Conversion

The BDS 4-Link conversion replaces the factory stamped steel radius arms to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets to mount HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes steering angle once lifted, paired with a heavy-duty track bar drop bracket to keep steering geometry in phase through suspension travel while recentering the front axle.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for a smooth ride across varied terrain
• Heavy duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for enhanced on- and off-road performance
• Available upgrade to FOX 2.5 Performance Elite shocks with external reservoir and dual speed compression adjustment

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 37 inches
• 4-Link conversion brackets: High-strength 1/4-inch steel
• Includes: Pro-Ride diesel-specific coil springs, 4-link control arms, forged drop pitman arm, track bar bracket, sway bar relocation hardware, brake line brackets, fabricated rear lift block, longer U-bolts, and shocks
• Compatible with: 2017–2019 Ford F350 Super Duty DRW 4WD Diesel

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult
• Tools Required: Torque Wrench, Drill / Bit Set, Pitman Arm Puller, Reciprocating Saw

Important Notes

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.
