4 Inch Lift Kit w/ 4-Link | Ford F250/F350 Super Duty (2011-2016) 4WD Diesel | Leaf Springs | FOX 2.0 Performance Series | BDS Suspension

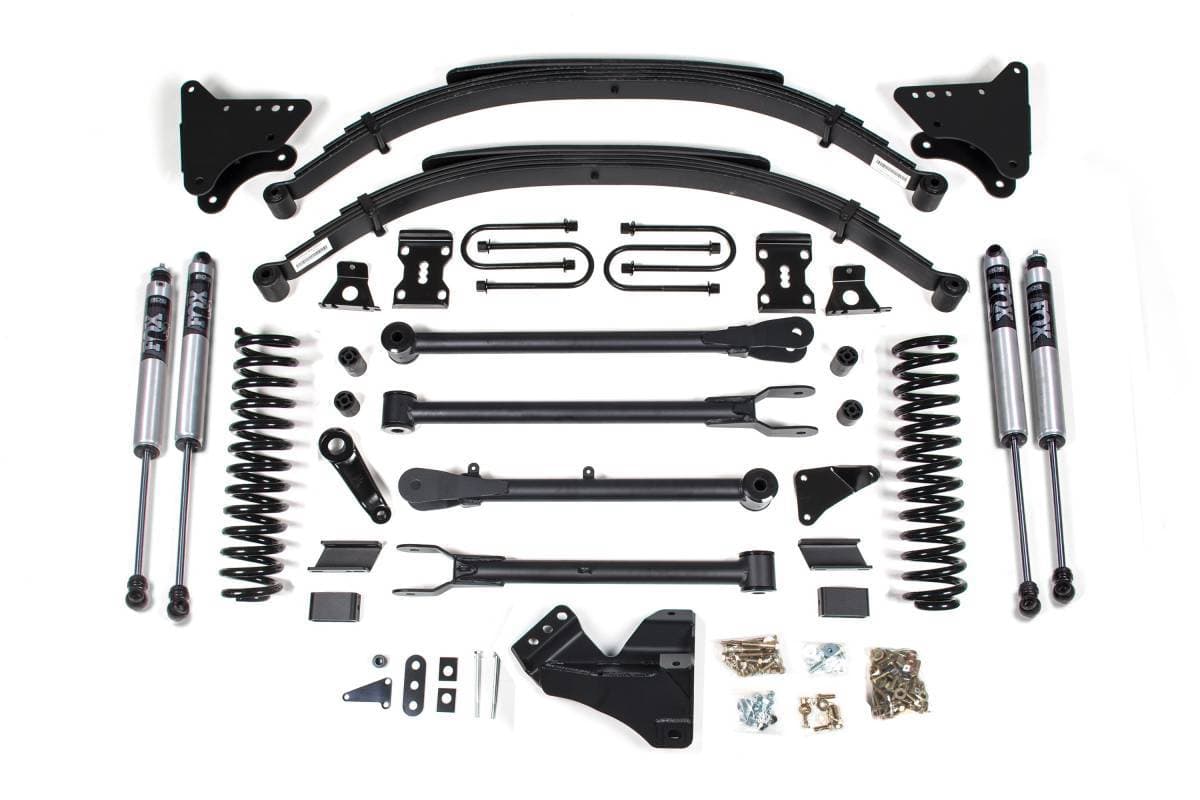

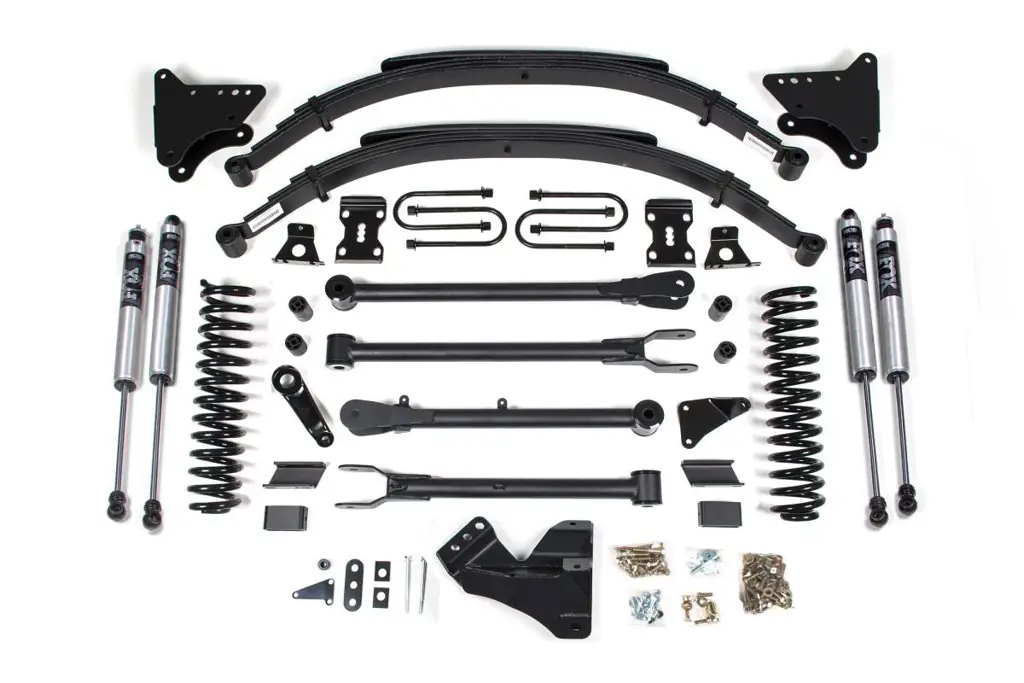

This configuration uses a Leaf Springs rear lift option paired with FOX 2.0 Performance Series shocks. The rear leaf springs use a multi-leaf progressive design for a smooth ride and maintain factory payload weight ratings. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

This 4-inch lift kit with 4-Link conversion from BDS Suspension is designed for 2011–2016 Ford F250 and F350 Super Duty diesel-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit features a high-strength fabricated lift block or leaf spring option, a u-bolt flip kit for maximum clearance, brake line brackets, and a matched set of shocks.

The 4-Link conversion replaces the factory stamped steel radius arms with BDS high-strength ¼-inch steel brackets, HD upper and lower control arms to correct axle positioning, and limits caster change throughout wheel travel. Diesel-specific Pro-Ride coil springs provide the correct lift height and a smooth, predictable ride across various terrains. Steering geometry is optimized via a forged drop pitman arm and a heavy-duty track bar drop bracket to keep steering components in phase through suspension travel while recentering the front axle.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs for a smooth ride through any terrain
• Heavy duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling

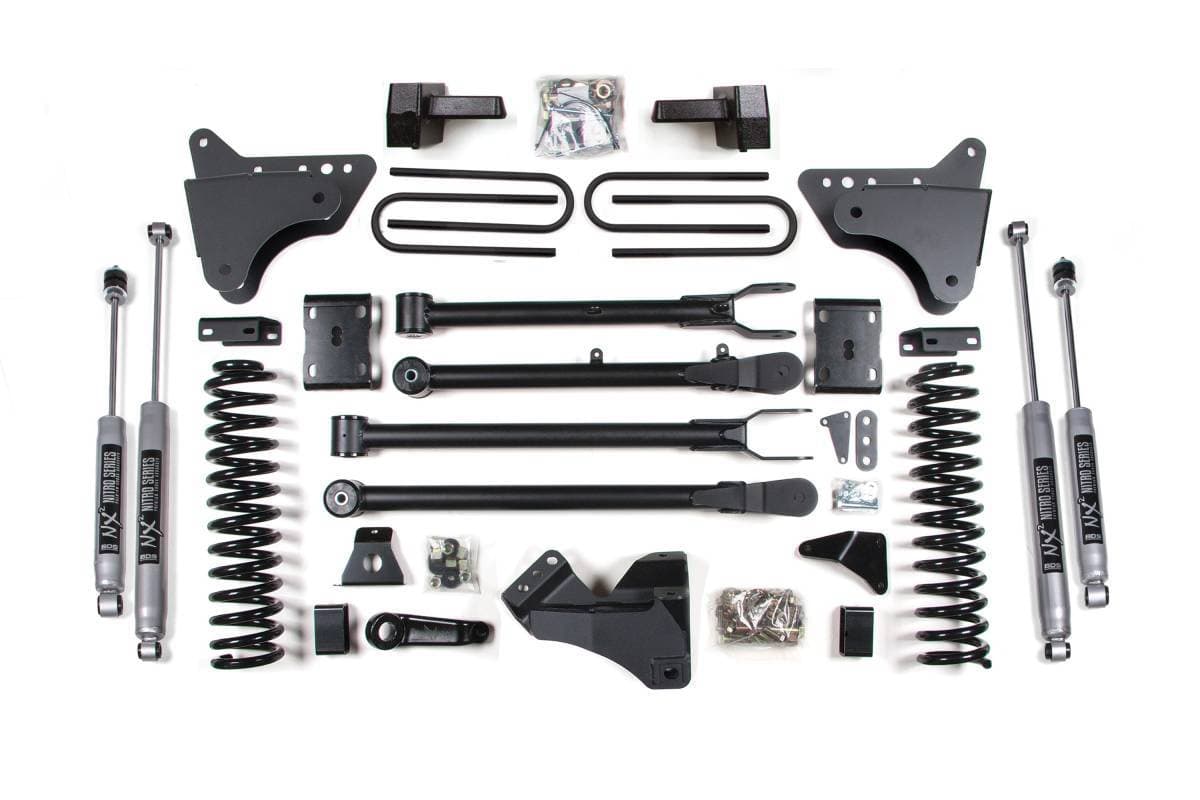

• Fabricated steel blocks provide a level stance from front to rear (Block Kit variant)
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate

Important Notes

• Removal of factory block required.
• Rear add-a-leaf is required for models equipped with factory 3-7/8" block for level to tail-high stance. Single add-a-leaf kit #113218 recommended for a more level stance. Dual add-a-leaf kit #113209 recommended for tail-high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems.)
• If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required. Although extremely rare, front and/or rear driveline vibration may occur.
• If equipped with rear sway bar, #123009 required.
• U-bolts will not work on dually models.
