Overview

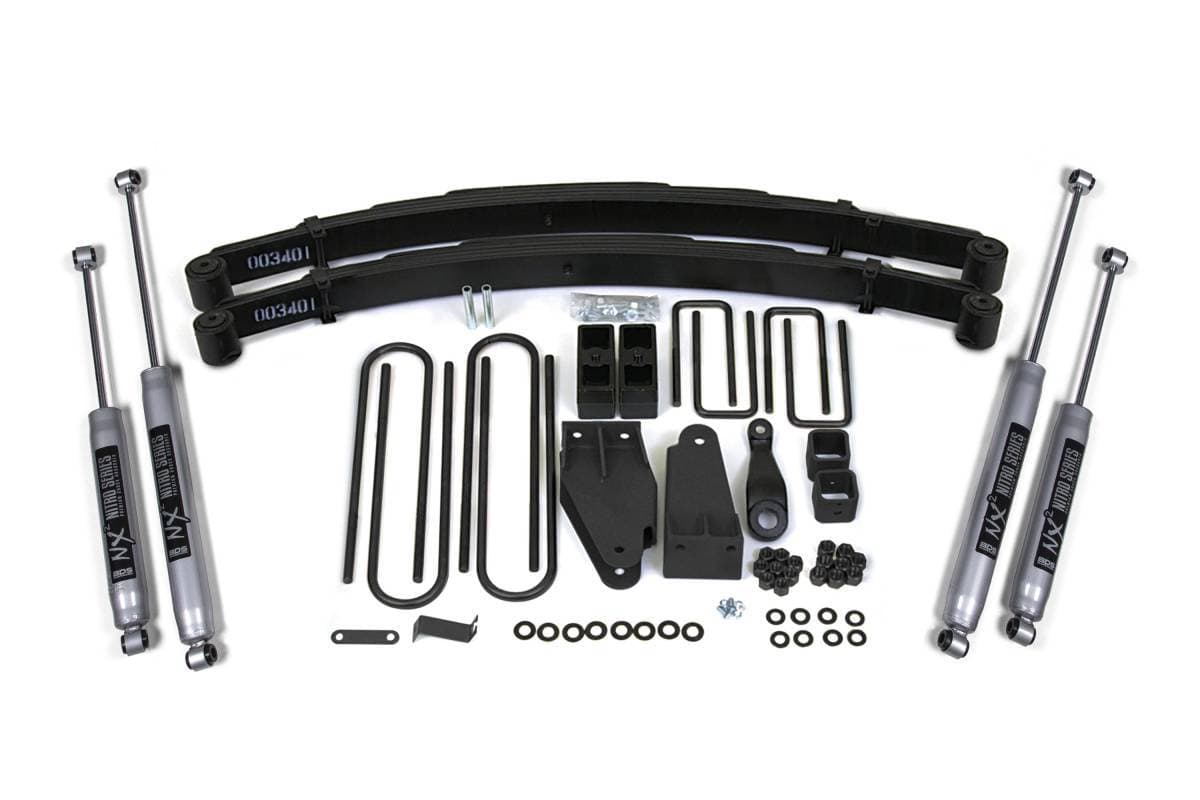

This 4-inch lift kit from BDS Suspension is designed for 1980–1996 Ford F250 TTB 4WD trucks, improving stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes Glide-Ride leaf springs, axle pivot drop brackets, a forged drop pitman arm for steering correction, and bump stop brackets. In the rear, a high-strength lift block and longer u-bolts are paired with matching shocks. Shocks are available in NX2 Nitro or FOX Performance Series configurations. BDS Glide-Ride leaf springs feature an exclusive triple-stage, multi-leaf progressive spring rate design engineered to deliver a smooth ride under any load while providing flexibility throughout the suspension cycle.
Features
- Easy, 100% bolt-on installation
- Glide-Ride leaf springs provide full lift height and increased load capacity
- Pitman arm maintains proper steering angles for improved handling
- Cast steel blocks provide a level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Specifications
- Front Lift Method: Leaf Spring
- Front Lift Height: 4"
- Rear Lift Method: Block
- Rear Lift Height: 3"
- Total Lift Range: 4"–5.5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Difficulty: Moderate
- Special Tools Required: Pitman Arm Puller
Important Notes
- Not recommended for Diesel models.
- This system is designed for Twin-Traction Beam (TTB) style suspension only. The kit will not work on front solid axle applications.
