Configured with a 4 Inch Rear Block Kit for a level to tail-high appearance, paired with NX2 Nitro Series rear shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.
Overview

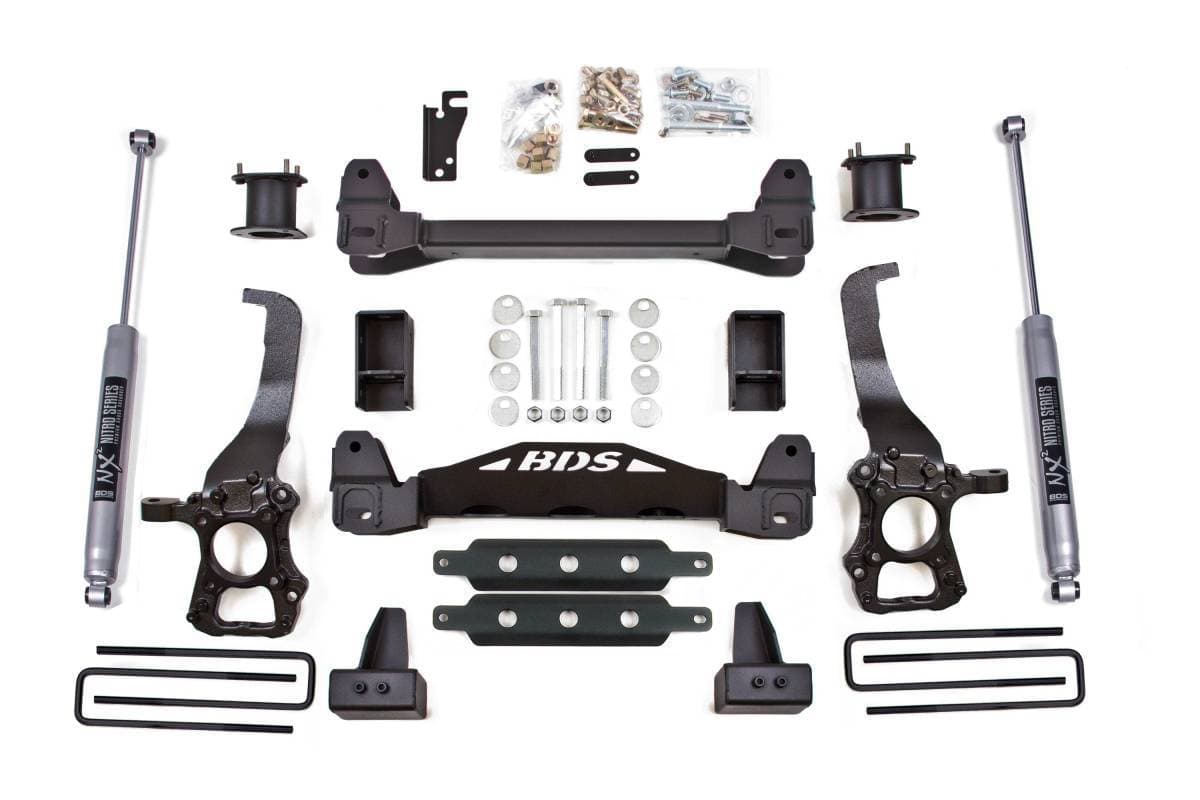

This 4-inch suspension lift kit from BDS Suspension is designed for 2015–2020 Ford F150 2WD trucks, improving stance, performance, and off-road capability while providing clearance for up to 35-inch tires. The kit takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry to maintain proper on-road handling characteristics.
Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers and a skid plate designed for off-road protection. Steering geometry is corrected at the new ride height with a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included for a comprehensive front suspension lift. In the rear, high-strength fabricated lift blocks and longer u-bolts lift and level the stance, complemented by your choice of rear shock absorber.
Features
- High clearance crossmembers improve strength and off-road capability
- Heavy duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
- Top-mounted strut spacers provide lift and install easily
- Differential skid plate for improved off-road protection
- Rear lift blocks and u-bolts to lift and level the stance
- Available with NX2 Nitro shocks featuring vehicle-specific valving for better control
- Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
- Rear block kit available in 3-inch (tail-low to level stance) or 4-inch (level to tail-high appearance)
Specifications
- Front lift: 4 inches via high-arched 1/4-inch thick laser-cut steel crossmembers and top-mounted strut spacers
- Rear lift: 3-inch or 4-inch fabricated lift blocks with longer u-bolts
- Steering knuckles: CNC-machined ductile cast iron
- Crossmember material: 1/4-inch thick laser-cut steel
- Maximum tire clearance: up to 35 inches
- Compatible with Diesel models
- FMVSS No. 126 Compliant
Installation
- Estimated Time: 8–10 hours
- Difficulty: Difficult
- Special Tools Required: Cut-off Tool, Reciprocating Saw
Important Notes
- 18-inch wheels with 5–5.5-inch total backspacing should be test fit prior to mounting tires to ensure proper clearance to the BDS steering knuckle.
- 18-inch or larger diameter wheels are required. Stock 17-inch and 18-inch wheels cannot be reinstalled.
- Stock 20-inch wheels can be used with up to 305/60-20 tires.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406.
- Requires frame bracket modification.
- This system will work on Diesel models.
- Will not fit HD models (7 lug).
- This kit is FMVSS No. 126 Compliant.
