4 Inch Lift Kit | 2014 Ford F150 Raptor 4WD | BDS Suspension

Overview

This 4-inch suspension lift kit by BDS Suspension is engineered specifically for the 2014 Ford F150 Raptor 4WD. After extensive development, BDS determined that the 4-inch lift height provides the optimal balance between increased ride height and full compatibility with the factory-equipped FOX Shocks, preserving the complete range of factory suspension travel. The kit employs BDS's high-clearance design to improve ground clearance, strength, and off-road protection while correcting suspension and steering geometry for proper on-road handling.

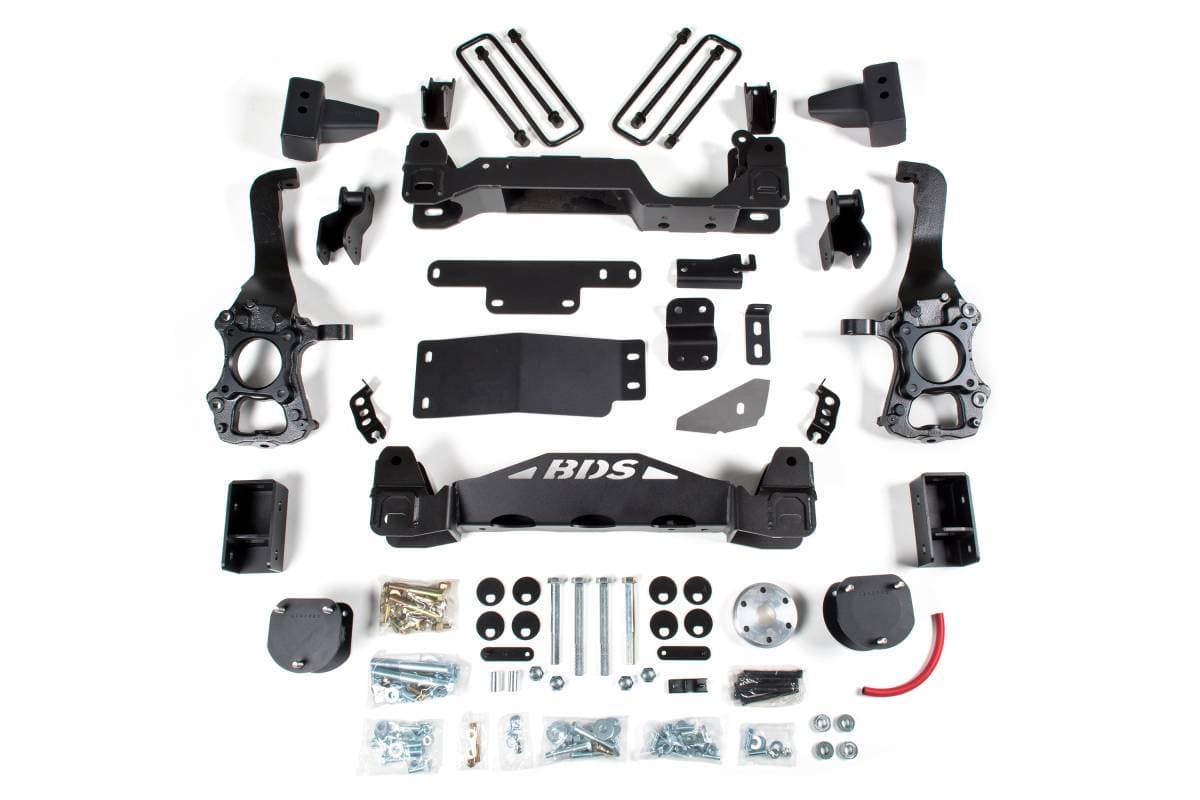

Up front, the kit features high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, multi-piece differential relocation brackets, and a skid plate designed for off-road protection. Steering geometry is corrected at the new ride height using a pair of CNC-machined ductile iron steering knuckles, sway bar relocation brackets, brake line brackets, and alignment cam bolts. In the rear, high-strength lift blocks and longer U-bolts lift and level the stance, while rear shock relocation brackets maintain the factory FOX internal bypass rear shocks.

Features

• High-clearance crossmembers improve strength and off-road capability
• Heavy-duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts to lift and level the stance
• Shock relocation brackets to maintain factory FOX Shocks

Specifications

• Lift Height: 4–5.5 inches
• Front Lift Method: Cross-Member
• Front Lift Height: 4 inches
• Rear Lift Method: Block
• Rear Lift Height: 4 inches
• Shocks Included: No

Installation

• Estimated Installation Time: 8–10 hours
• Installation Difficulty: Difficult

Important Notes

• Required frame bracket modification and welding
• Stock wheels cannot be installed
• 37x12.50 on 18x9 w/ 5" BS — check for proper tie rod end clearance
• FMVSS No. 126 Compliant
