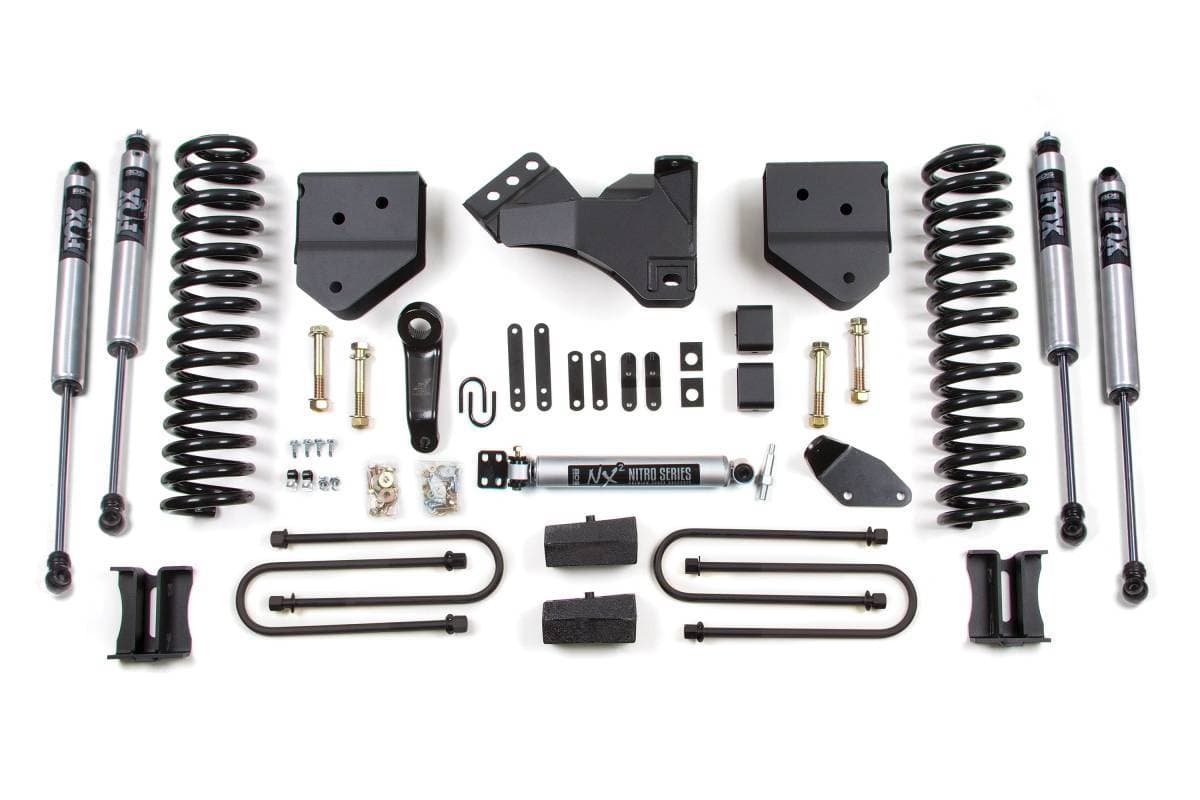

Configured with a Block Kit Without Factory Overload for the rear lift and FOX 2.0 Performance Series shocks. The steel lift block features a built-in bump stop to provide a level stance and correct pinion angles. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

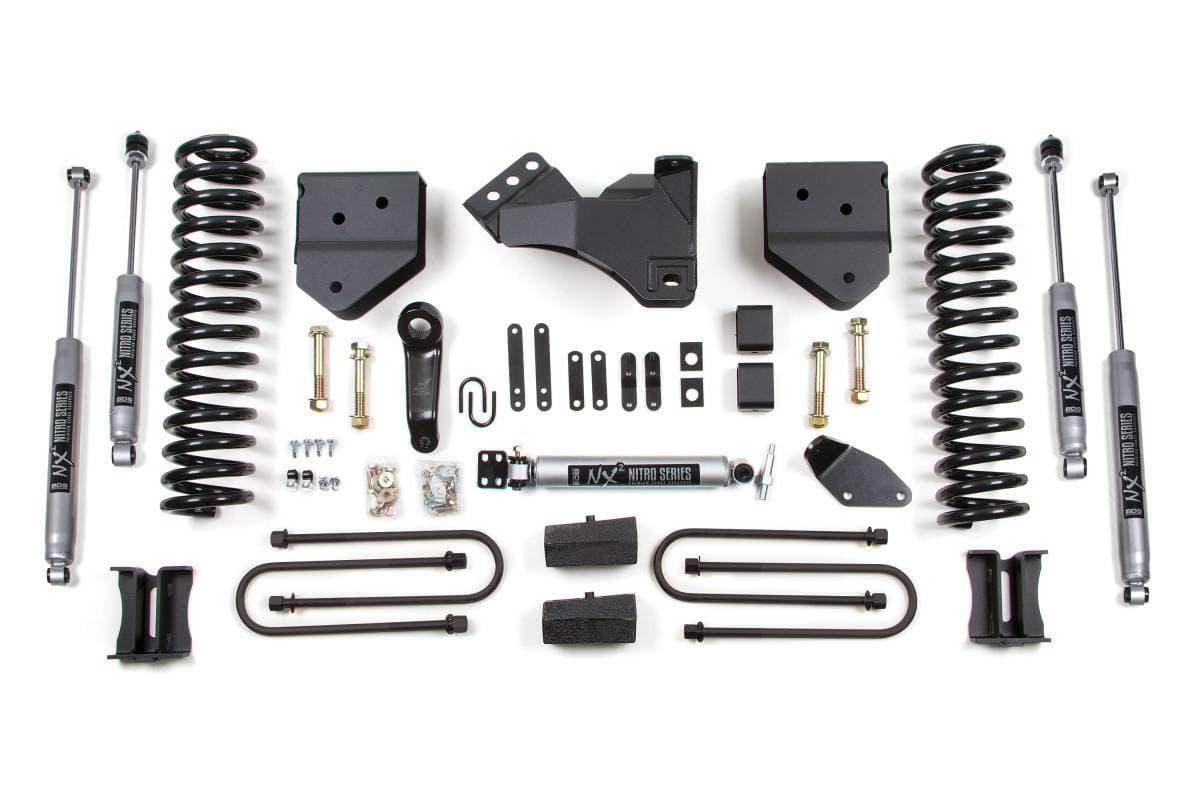

This 4-inch lift kit from BDS Suspension is designed to increase ground clearance on 2008-2010 Ford F250 and F350 Super Duty gas trucks, improving stance, performance, and capability with clearance for up to 35-inch tires. Up front, the kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned nitrogen-charged shocks. In the rear, the kit utilizes a high-strength lift block with longer u-bolts or available leaf springs, paired with your choice of NX2 Nitro or FOX 2.0 Performance Series shocks.
Features
- 100% bolt-on installation
- Gas-specific Pro-Ride dual-rate coil springs for smooth, predictable ride across various terrains
- Heavy-duty radius arm drop brackets provide correct caster and maintain stock driving characteristics
- Forged drop pitman arm minimizes steering angle after lift
- Heavy-duty track bar drop bracket keeps steering geometry in phase through suspension travel and recenters the front axle
- Sway bar relocation included
- Brake line brackets included
- Steel lift blocks with built-in bump stop provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Available upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance
- Clearance for up to 35-inch tires
Specifications
- Lift Height: 4 inches
- Vehicle Fitment: 2008-2010 Ford F250/F350 Super Duty 4WD Gas
- Rear lift options: Block Kit Without Factory Overload, Block Kit With Factory Overload, or Leaf Springs
- Shock options: NX2 Nitro Series or FOX 2.0 Performance Series
- Lift blocks constructed of high-strength steel
- Leaf springs feature multi-leaf progressive design; maintain factory payload weight ratings
Installation
- Estimated Time: 8 hours
- Difficulty: Moderate
- Special Tools Required: Grinder/Sanding Disc, Drill/Bit Set, Pitman Arm Puller
Important Notes
If equipped with a 2-piece driveshaft, a driveshaft alignment kit may be required.
