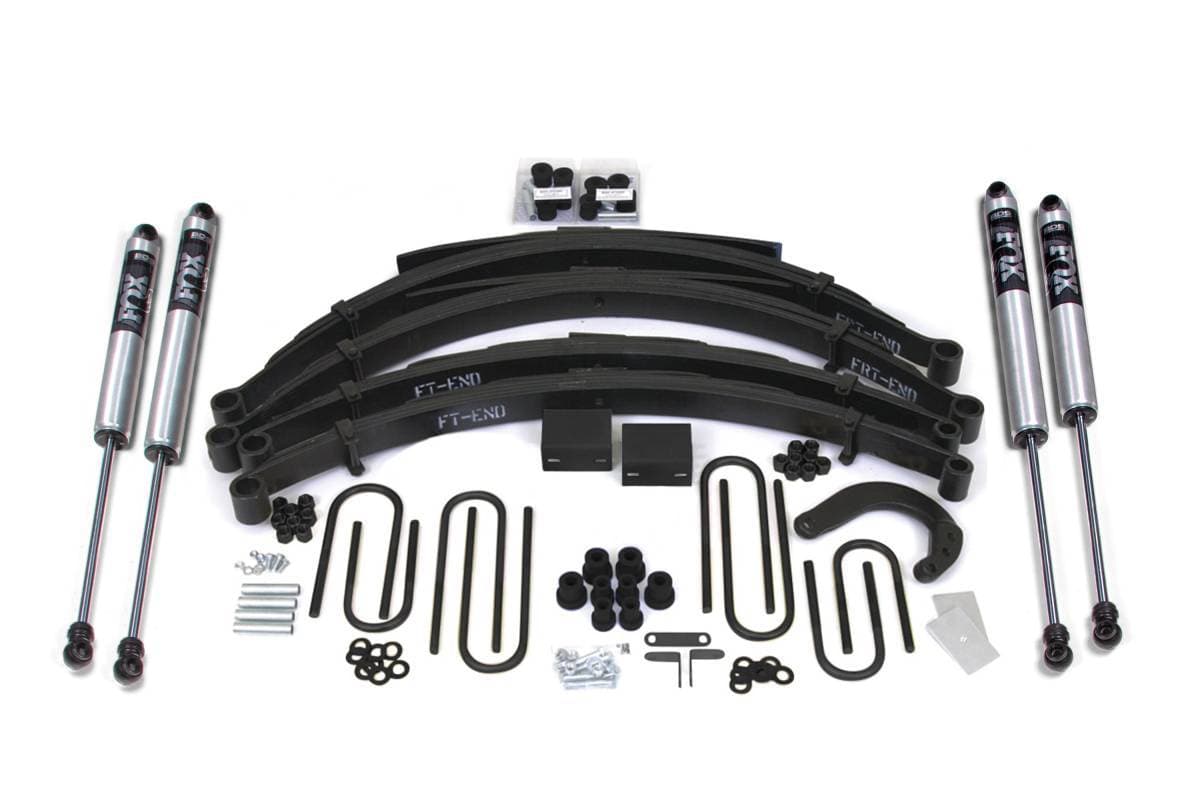

Rear lift achieved with Glide-Ride Leaf Springs. These multi-leaf progressive spring rate rear leaf springs maintain factory payload weight ratings, include new center pins, and provide a smooth ride under any load. Paired with FOX 2.0 Performance Series shocks featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

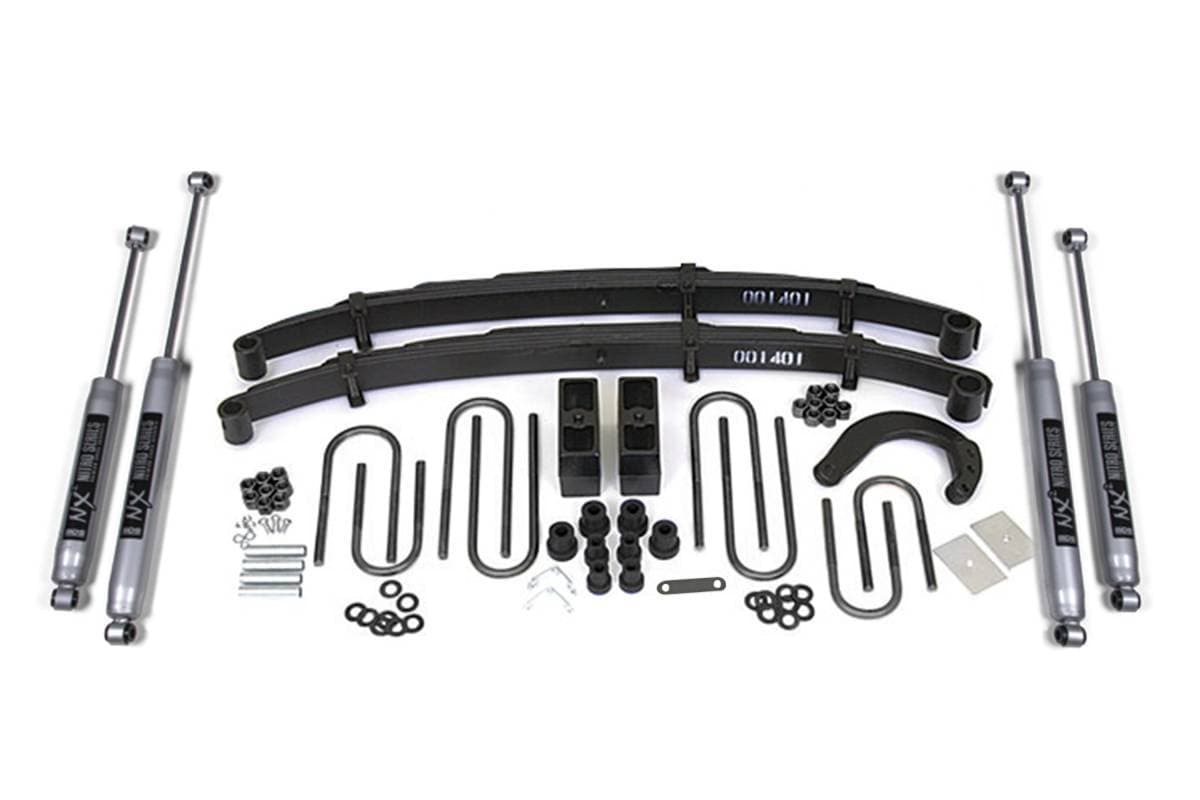

This 4-inch lift kit from BDS Suspension is designed for 1988–1991 Chevy and GMC 3/4 ton Trucks and Suburbans (4WD). The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes Glide-Ride leaf springs, a 4-inch steering arm for steering correction, brake line brackets, and precision-tuned shocks. In the rear, the kit utilizes a high-strength lift block, longer U-bolts, and a matching set of shocks. Rear lift options include a block kit, a block kit with add-a-leaf, or full replacement Glide-Ride leaf springs.
BDS Glide-Ride leaf springs use an exclusive triple-stage, multi-leaf progressive spring rate design that provides a smooth ride under any load while maintaining flexibility throughout the suspension cycle.
Features
- 100% bolt-on installation
- Glide-Ride leaf springs provide full lift height and increased capacity
- New 4-inch steering arm maintains proper steering angles for improved handling
- Cast steel blocks and available add-a-leaf provide level stance from front to rear
- NX2 Nitro shocks with vehicle-specific valving for better control (standard)
- FOX 2.0 Performance Series shocks available for maximum performance on and off-road (upgrade option)
- Brake line brackets included
- Clearance for up to 35-inch tires
Specifications
- Lift Height: 4 inches
- Front Lift: Glide-Ride multi-leaf progressive leaf springs
- Steering Correction: 4-inch steering arm
- Rear Lift Options: 4 Inch Block Kit, 4 Inch Block Kit with Add-A-Leaf, or Glide-Ride Leaf Springs
- Rear blocks: Cast iron construction for high strength and correct pinion angles
- Add-A-Leaf: Provides an additional 1 inch of lift; includes new center pins; reduces axle wrap
- Rear Leaf Springs (where selected): Multi-leaf progressive design; maintains factory payload weight ratings; includes new center pins
- U-bolts: Extended length included with block kit options
Installation
- Estimated Time: 4 hours
- Difficulty: Moderately Easy
- Special Tools Required: Ball Joint Separation Tool, Cut-off Tool
Important Notes
- The 3/4 ton commonly came with a factory 56-inch eye-to-eye rear leaf spring. However, some were produced with a 52-inch rear spring. If ordering rear leaf springs, measure your factory rear spring before ordering.
- If equipped with a factory front sway bar, order the front sway bar shackle link kit listed in the accessories section.
- Some vehicles came with factory front dual shocks. If you wish to replace the factory duals, you must order the additional two auxiliary shocks in the options.
- #001408 comes with OE style rubber bushings installed.
- Exhaust modification may be required to clear the front driveshaft.
