Configured with Rubber Bump Stops — factory-style hard stops that protect shocks and suspension components at the end of travel. Well-suited for street use and light off-roading where bump stops are engaged at low speeds.
Overview

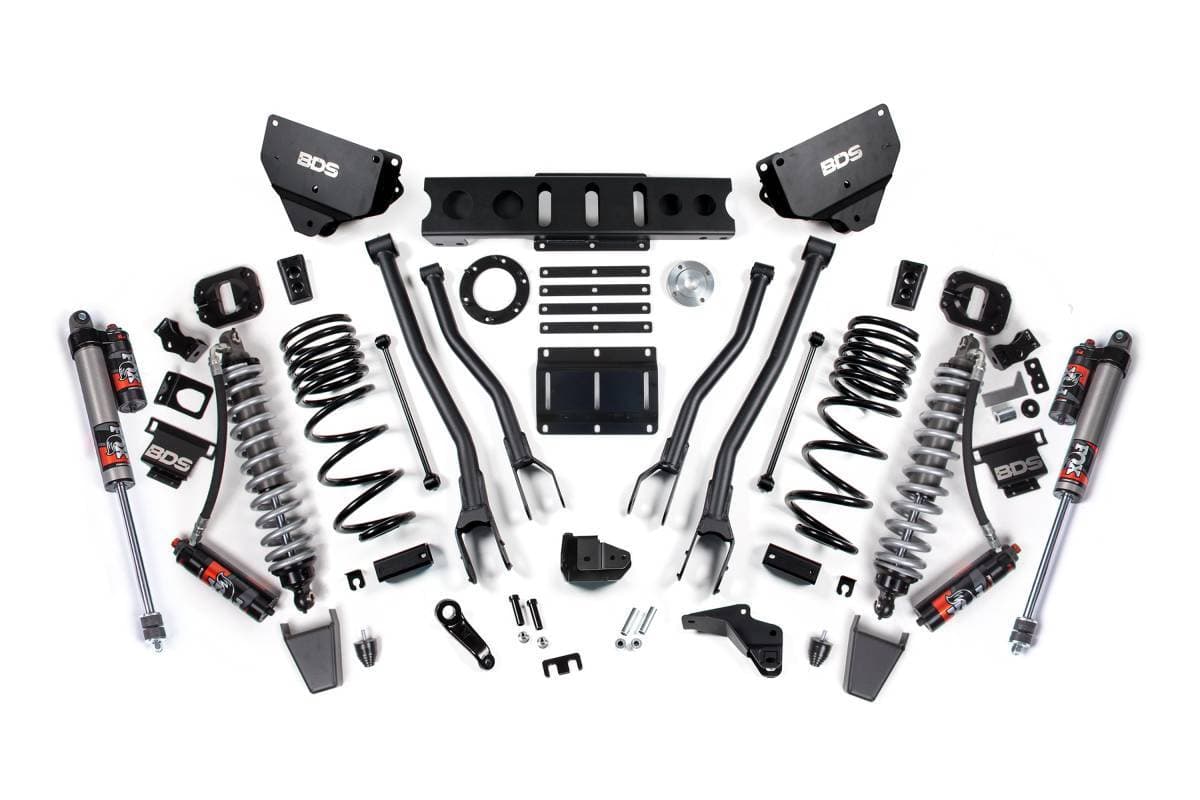

The BDS 4-Inch 4-Link Lift Kit for 2014–2018 Ram 2500 4WD Diesel trucks replaces the factory suspension with heavy-duty components designed for increased articulation, strength, and off-road capability. The kit centers on a coilover conversion up front, utilizing FOX 2.5 Performance Elite coilovers mounted in the factory coil spring bucket for improved damping and ride control. Heavy-duty BDS 4-Link radius arms correct caster geometry and maximize ground clearance, while FOX Performance Elite rear shocks manage the rear suspension. A front adjustable track bar and sway bar correction are included to maintain proper alignment and handling after lifting.
Features
- FOX 2.5 Performance Elite coilovers mount in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (hydraulic bump stop)
- Heavy-duty tubular steel radius arms correct caster while maximizing ground clearance
- Front adjustable track bar allows the front axle to be re-centered after the lift
- Front sway bar correction maintains handling performance
Installation
- Estimated Time: 7–8 hours
- Difficulty: Difficult
- Tools Required: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Not designed for Power Wagon models
- Must be used with an aftermarket driveshaft due to increased wheel travel
- Indexing ring only fits 6-bolt transfer cases (most common)
- Some heavy-duty tow package vehicles may have 8-bolt transfer cases (with heavy-duty Aisin 6-speed transmissions) — order part #122813
