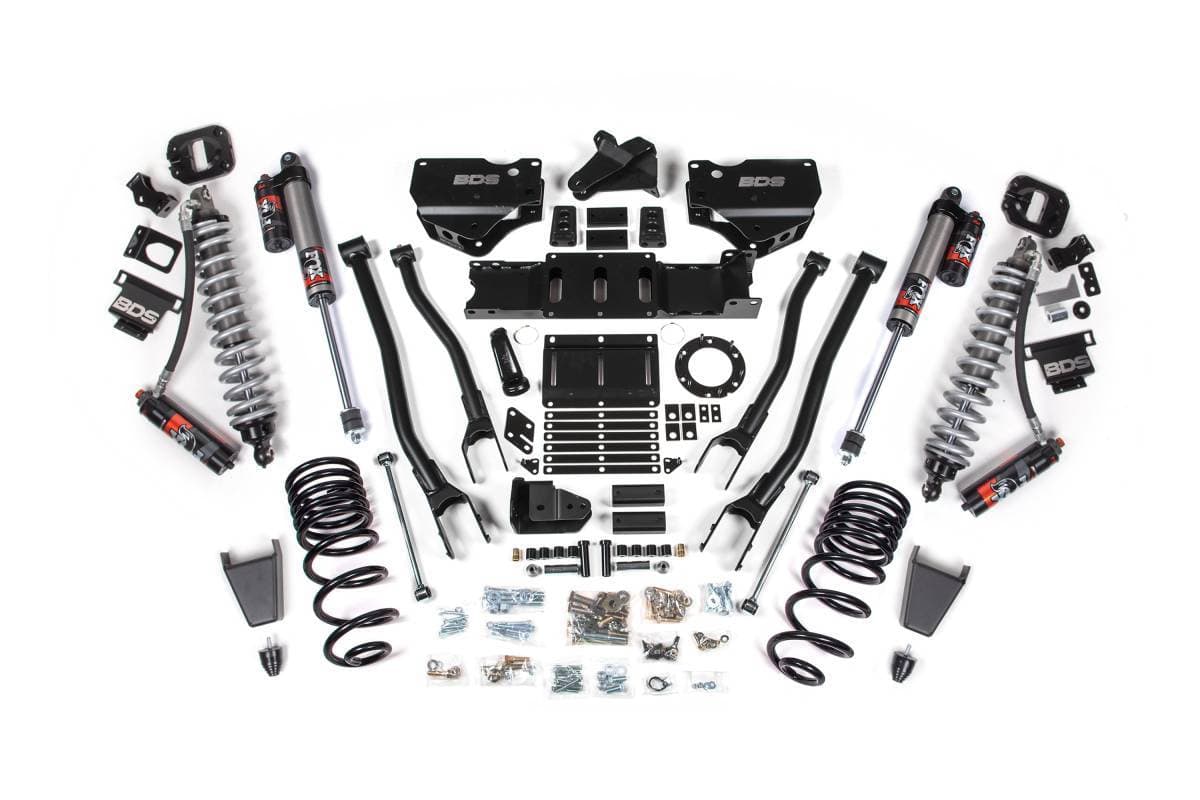

4 Inch 4-Link Lift Kit | FOX 2.5 Performance Elite Coil-Over Conversion | Ram 2500 (2019-2024) 4WD Diesel | FOX 2.0 Hydro Bump Stop | BDS Suspension

Configured with FOX 2.0 Factory Race Series Hydraulic Bump Stops — engineered to perform in the roughest terrain, these hydraulic bump stops provide an additional layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid off-roader hitting big obstacles and rough terrain at speed.

Overview

The BDS 4-Inch 4-Link Lift Kit for 2019–2024 Ram 2500 4WD Diesel trucks replaces the stock suspension with heavy-duty hardware engineered for serious off-road performance and durability. Heavy-duty BDS 4-Link arms improve articulation and strength, while a front Coilover Conversion Kit fitted with FOX 2.5 Performance Elite coilovers delivers precision damping and ride quality both on and off the road. FOX 2.5 Performance Elite rear shocks maintain control over demanding terrain. An optional front auxiliary shock absorber (hydraulic bump stop) is available to add an additional layer of impact absorption at full suspension travel.

Features

• FOX 2.5 Performance Elite coilovers mount in the factory coil spring bucket
• FOX 2.5 Performance Elite rear shocks

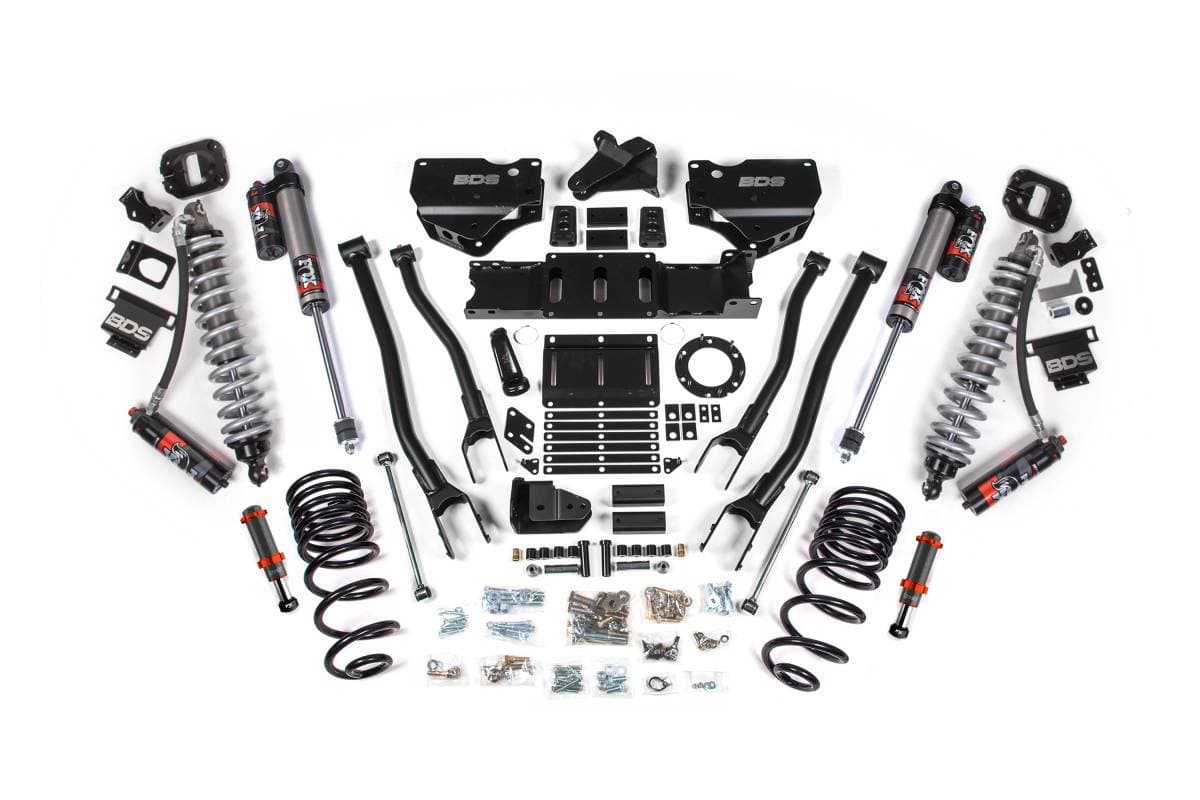

• Optional auxiliary front shock absorber (hydraulic bump stop)
• Heavy-duty tubular steel 4-Link arms correct caster while maximizing ground clearance
• Front adjustable track bar allows the front of the truck to be re-centered after lifting
• Front sway bar correction to maintain handling performance

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Required Tools: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment

Important Notes

• Will not fit air ride equipped models
• Diesel models only
• Not designed for Power Wagon models
• Requires aftermarket driveshaft due to increased wheel travel
