Rear lift provided by Glide-Ride replacement leaf springs — a multi-leaf progressive design that mounts between the factory axle and leaf springs, corrects pinion angles, eliminates any need for a lift block, reduces axle wrap, and maintains factory payload weight ratings. Note: installation requires removal of the fuel tank. Paired with NX2 Nitro Series rear shocks featuring nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, and self-lubricating seals with a silver powder coat finish.
Overview

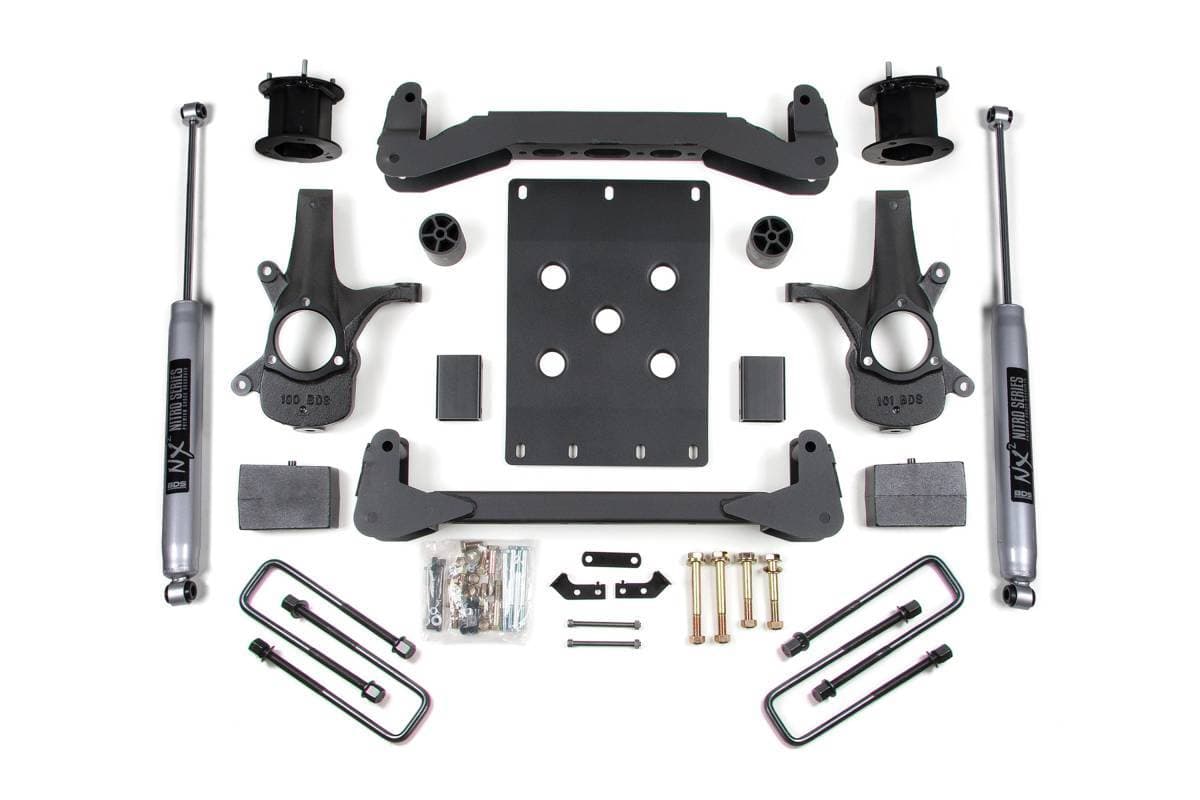

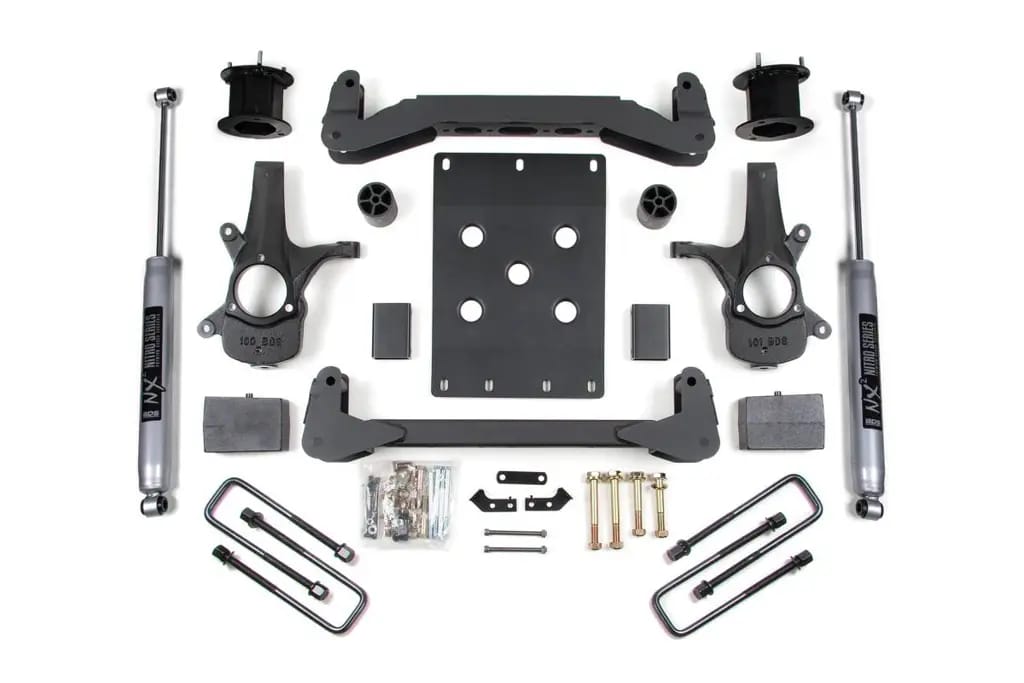

This BDS 4.5-inch lift kit is designed for 2007–2013 Chevy Silverado and GMC Sierra 1500 2WD trucks. The kit provides clearance for up to 33-inch tires while correcting suspension and steering geometry for proper on-road handling at the new ride height. Up front, the kit uses full-length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers, heavy duty skid plates, CNC-machined ductile iron steering knuckles, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and all necessary hardware. In the rear, the kit is available with either a replacement lift block or full Glide-Ride leaf springs, along with new u-bolts, brake line brackets, and a choice of NX2 Nitro or FOX 2.0 Performance Series shocks.
Features
- High-clearance crossmember design maximizes ground clearance using 1/4-inch thick laser-cut steel
- Front skid plate system bolts together to form a rigid subframe for added off-road protection
- CNC-machined ductile cast iron steering knuckles correct steering geometry at the lifted ride height and maintain factory tie rod end compatibility and ESC system compliance
- Rear options include a cast iron lift block (retains ride quality and load capacity) or Glide-Ride multi-leaf progressive replacement leaf springs
- Choice of FOX 2.0 Performance Series IFP monotube or NX2 Nitro Series twin-tube rear shocks
- Factory Protection Plus drivetrain warranty included
- Includes sway bar drops, bump stop extensions, brake line brackets, CV spacers, u-bolts, and all necessary hardware
Specifications
- Lift height: 4.5 inches
- Tire clearance: up to 33 inches
- Crossmember material: 1/4-inch thick laser-cut steel, high-arched design
- Steering knuckles: CNC-machined ductile cast iron
- Rear lift block: cast iron, high-strength, corrects pinion angles
- Glide-Ride leaf springs: multi-leaf progressive design, maintains factory payload ratings, reduces axle wrap
- NX2 Nitro Series shocks: nitrogen-charged twin-tube, 10-stage velocity-sensitive valving, 1-3/8-inch high-flow piston, dual-welded ends, self-lubricating seals, silver powder coat finish
- FOX 2.0 Performance Series shocks: 2-inch impact extruded aluminum IFP monotube body, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, clear anodized finish
Installation
- Estimated installation time: 8 hours
- Difficulty: Difficult
- Tools required: Cut-off wheel or equivalent, reciprocating saw, strut compressor, welding equipment
Important Notes
- This system will not fit 2007 Classic models.
- Installation of rear leaf springs requires removal of the fuel tank.
- Requires frame bracket modification.
- 20-inch wheels with 5-inch to 5-3/4-inch backspacing recommended to reduce trimming.
- Traction bars will not fit regular cab short box models.
- Will not fit two-mode hybrid models with electronic power steering.
- Stock 20-inch wheels can be re-installed only with factory tire size.
- Factory 17-inch and 18-inch wheels cannot be re-installed.
