3 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (2020-2022) 4WD Diesel | BDS Suspension

Overview

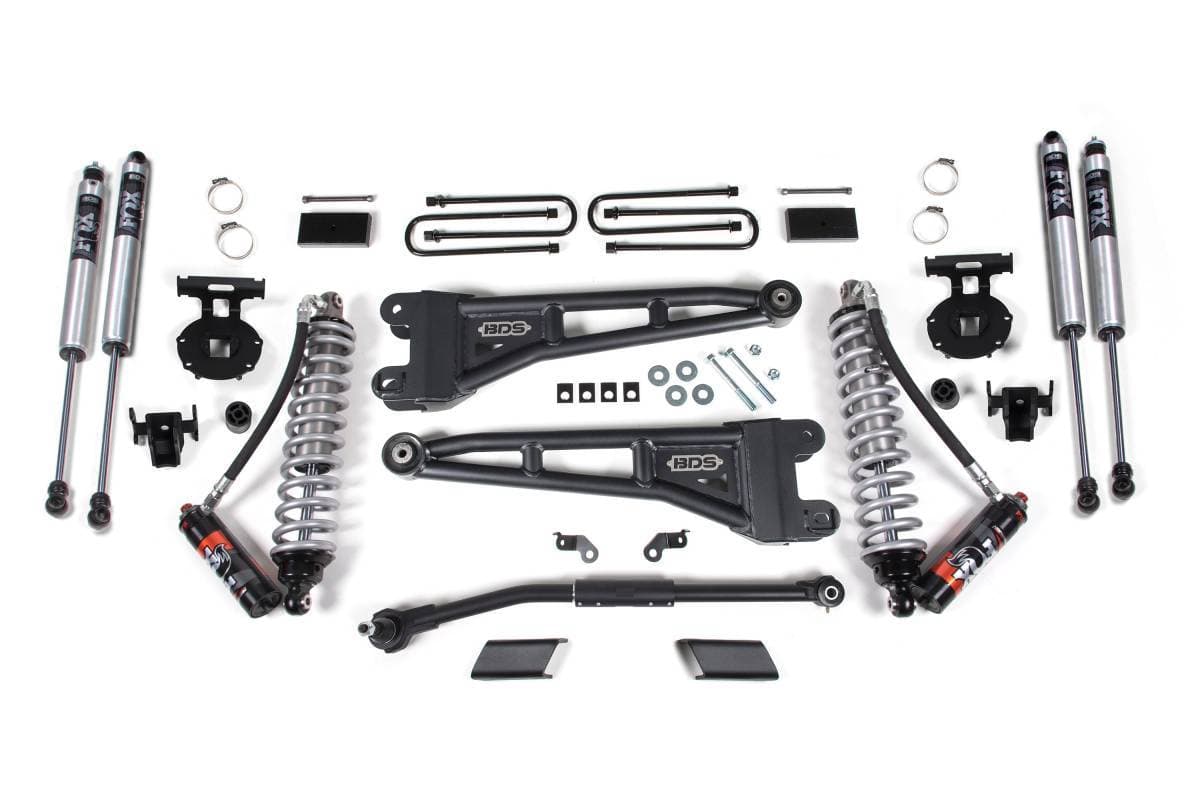

Build the ultimate Ford Super Duty diesel-powered truck with this 3-inch radius arm lift kit featuring FOX 2.5 Performance Elite coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35-inch tires.

Up front, the kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty replacement radius arms, a high-strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, and brake line brackets. In the rear, this kit utilizes a high-strength fabricated lift block, longer U-bolts, and a matching set of FOX Performance shocks.

FOX 2.5 Performance Elite Coil-Over Shocks

FOX 2.5 Performance Elite shocks offer next-level performance for both on-road comfort and off-road capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. A remote reservoir provides additional fluid capacity to keep shocks running cool in rough terrain. The DSC adjuster offers 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

In place of the factory stamped steel radius arms, BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights, along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar

The BDS high-strength adjustable track bar maintains proper handling and steering geometry by allowing you to recenter the front axle at a variety of lift heights. Built from 1-3/8-inch solid steel stock, the track bar comes pre-assembled with bushings and bolts into the factory mounting points.

Features

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for maximum performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specifications

• Front Lift Method: Coil-Over
• Front Lift Height: 3"
• Rear Lift Method: Block
• Rear Lift Height: 1"
• Lift Height Range: 2"–3.5"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 5 hours
• Installation Difficulty: Moderate
• Tools Required: 30mm Socket, Die Grinder, Drill / Bit Set, Pitman Arm Puller, Reciprocating Saw

Important Notes

• Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
• Larger tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). BDS recommends having this recall procedure performed prior to installing the lift.
• Trucks without top-mounted overload springs require (x4) UBT4031, available to purchase separately.
• Fits SRW models only.
