Configured with Rubber Bump Stop — factory-style rubber bump stops provide a firm, reliable hard stop for the suspension, protecting shocks and components. Well-suited for road use and light off-roading where bump stops are engaged at low speeds.
Overview

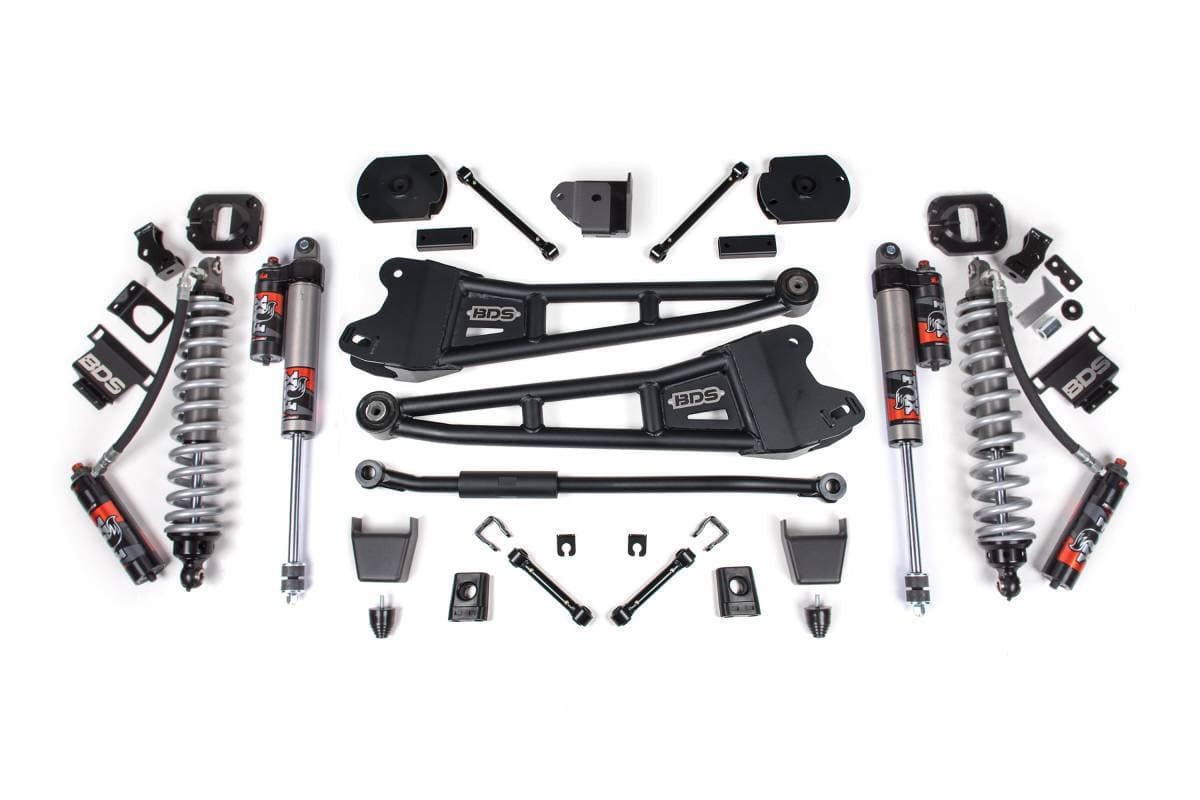

The BDS 3" Radius Arm Lift Kit for Ram 2500 trucks replaces the factory suspension setup with heavy-duty components designed for demanding on- and off-road use. Heavy-duty BDS radius arms improve articulation and provide rugged strength, while the BDS Coilover Conversion Kit fitted with FOX 2.5 Performance Elite coilovers delivers precise damping and improved ride quality. Out back, FOX 2.5 Performance Elite shocks maintain control across varied terrain. An optional FOX 2.0 hydraulic bump stop for the front is available for additional impact absorption during high-speed or heavy-impact off-road use.
Features
- FOX 2.5 Performance Elite coilover mounts in the factory coil spring bucket
- FOX 2.5 Performance Elite rear shocks
- Optional auxiliary front shock absorber (FOX 2.0 Hydraulic Bump Stop)
- Heavy-duty tubular steel radius arms — correct caster while maximizing ground clearance
- Front adjustable track bar — allows the front of the truck to be re-centered after lifting
- Front sway bar correction to maintain handling performance
Specifications
- Lift Height: 3 inches
- Radius Arms: Heavy-duty tubular steel construction
- Front Shocks: FOX 2.5 Performance Elite coilovers
- Rear Shocks: FOX 2.5 Performance Elite
- Includes front adjustable track bar and sway bar correction
- Indexing rings available for 6- and 8-bolt equipped models (select in Customize menu)
Installation
- Estimated Time: 7–8 hours
- Difficulty: Difficult
- Required Tools: 8677 Chrysler ball joint separation tool (or equivalent), cut-off wheel or equivalent, plasma cutter, welding equipment
Important Notes
- Will not fit air ride equipped models
- Diesel models only
- Not designed for Power Wagon models
- If experiencing driveline vibration, indexing rings are available for 6- and 8-bolt equipped models — available in the Customize menu
