3 Inch Lift Kit | FOX 2.5 Performance Elite Coil-Over & FOX 2.0 Performance Rear Shocks | Ford F150 (2014-2020) 4WD | BDS Suspension

This configuration pairs the front FOX 2.5 Performance Elite coil-over shocks with FOX 2.0 Performance Series rear shocks, featuring a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

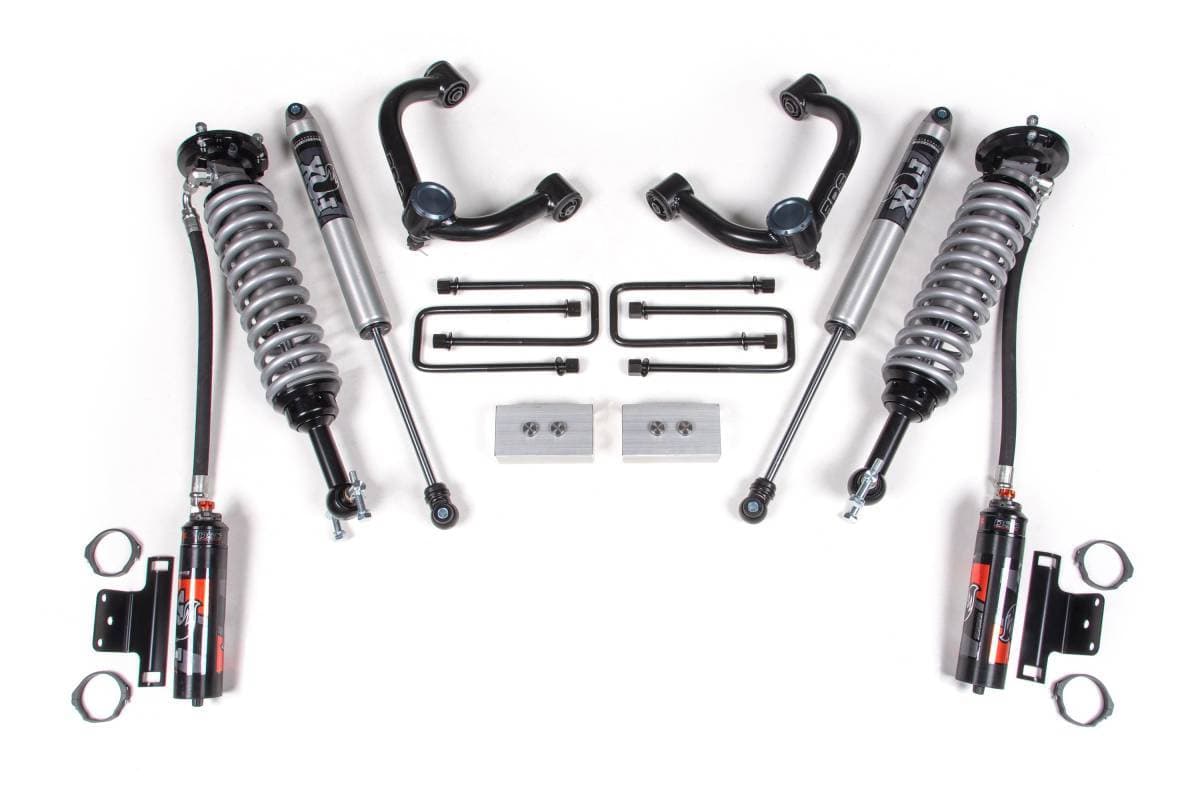

This 3-inch lift kit from BDS Suspension is designed for 2014–2020 Ford F150 4WD trucks, improving stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, the kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. The rear of the kit uses a complementary set of FOX shocks (see variant options) for a smooth ride.

Features

• FOX 2.5 Performance Elite coil-over shocks designed specifically for increased travel and the ability to soak up rough terrain
• DSC (Dual Speed Compression) adjuster provides 10 separate low-speed and 12 high-speed compression levels with a simple twist of either two adjuster knobs
• Black anodized aluminum reservoir increases cooling efficiency and provides additional fluid capacity
• Heavy duty upper control arms (UCAs) increase strength and allow for more suspension travel
• UCAs use 1.5-inch OD x .120-wall tubular construction with an indexed ball joint cup to correct ball joint positioning for additional down travel and camber adjustment
• Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
• Greaseable ball joints at the outer end for smooth, quiet operation and superior durability
• UCAs finished in durable black powder coat with a billet aluminum dust cap
• Rear lift blocks and U-bolts to lift and level the stance
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 3 inches
• Front shocks: FOX 2.5 Performance Elite Series remote reservoir coil-over, 2.5-inch impact extruded aluminum body
• Front shock shaft: 7/8-inch hard chrome plated heat-treated alloy steel
• UCA construction: 1.5-inch OD x .120-wall tubular steel
• UCA finish: Black powder coat with billet aluminum dust cap
• FOX 2.5 shocks are fully serviceable
• FOX shocks include a 1-year Manufacturer's Warranty

Installation

• Estimated Installation Time: 3 hours
• Difficulty: Moderate
• Tools Required: Cut-off Tool, Reciprocating Saw

Important Notes

Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009–13 model kits. Will not fit HD models (7 lug).
