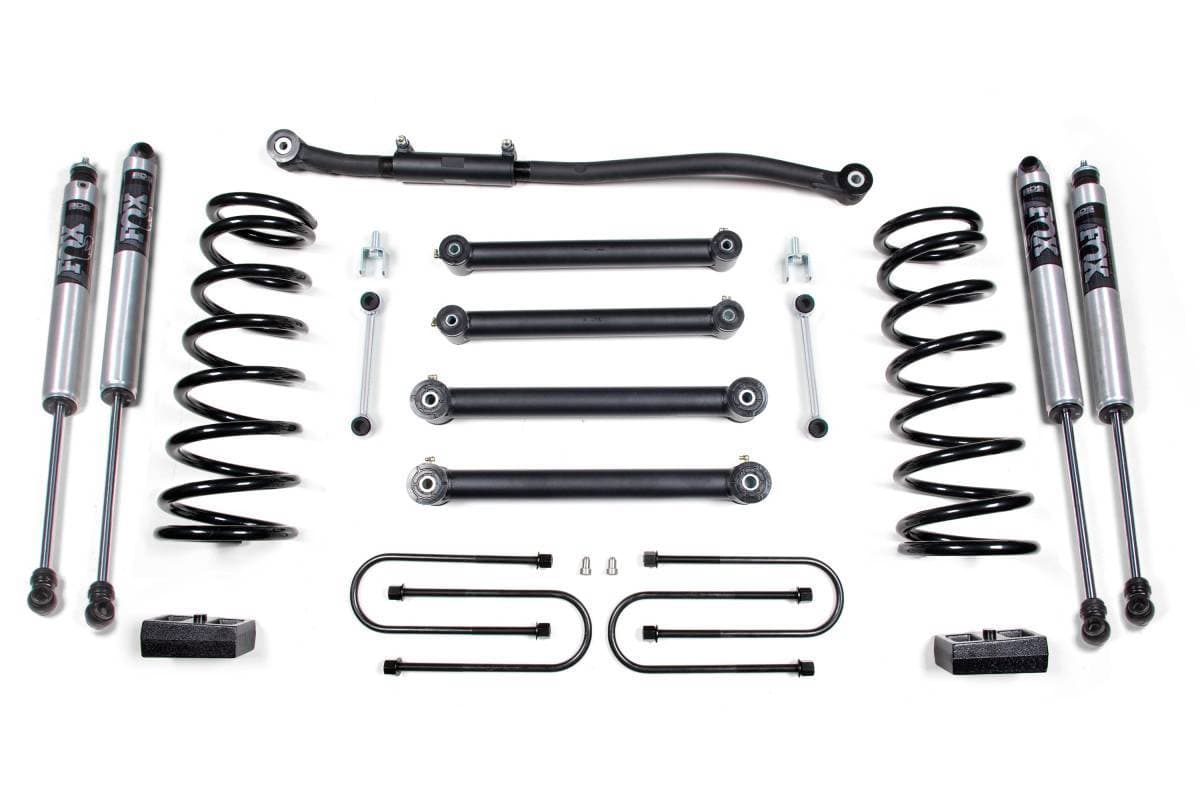

Configured for trucks with a 4 Inch rear axle tube and includes FOX 2.0 Performance Series IFP nitrogen-charged shocks front and rear for improved ride quality and off-road performance.
Overview
This 3-inch lift kit from BDS Suspension is designed for 2003–2013 Dodge RAM 2500 and 2003–2012 RAM 3500 4WD gas-powered trucks. The kit improves stance, performance, and capability while providing clearance for up to 35-inch tires. Up front, it includes gas-specific Pro-Ride coil springs, a heavy-duty adjustable track bar, fixed-length tubular upper and lower control arms, fixed-length sway bar links with stud eliminator, and precision-tuned nitrogen-charged shocks. The rear utilizes heavy-duty cast steel blocks, longer u-bolts, and a matching set of shocks. All control arms feature greaseable, heavy-duty round tubular construction and are designed to properly position the axle while allowing adjustment for correct caster and pinion angles.
Features
- Heavy-duty tubular short arms improve strength, handling, and caster control
- Front high-strength progressive rate Pro-Ride coil springs for a smooth ride on any terrain
- Front HD adjustable track bar to re-center and re-position the front axle
- Front sway bar correction links with stud eliminator to maintain handling performance
- Available with NX2 Nitro Series or FOX 2.0 Performance Series IFP nitrogen-charged shocks front and rear
- Rear heavy-duty cast steel blocks and longer u-bolts
- Up to 35-inch tire clearance
Specifications
- Lift Height: 3 inches
- Fitment: 2003–2013 Dodge RAM 2500 4WD (Gas) | 2003–2012 Dodge RAM 3500 4WD (Gas)
- Front coil springs: Full-length, gas-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter
- Track bar: Built from 1-3/8-inch solid steel stock; pre-assembled with bushings; bolts to factory mounting points
- Control arms: Fixed-length, greaseable, heavy-duty round tubular upper and lower
- Rear lift: Heavy-duty cast steel blocks with longer u-bolts
- Shock options: NX2 Nitro Series or FOX 2.0 Performance Series IFP nitrogen-charged
Installation
- Estimated Time: 6–8 hours
- Difficulty: Moderate
Important Notes
- Measure rear axle tube before ordering. Some 4-inch axle models have dual overloads that will require #4063 u-bolts.
- Rear lift options will not fit dually applications.
- Not recommended for Power Wagon models.
- Will not fit commercial chassis (Cab and Chassis) models.
