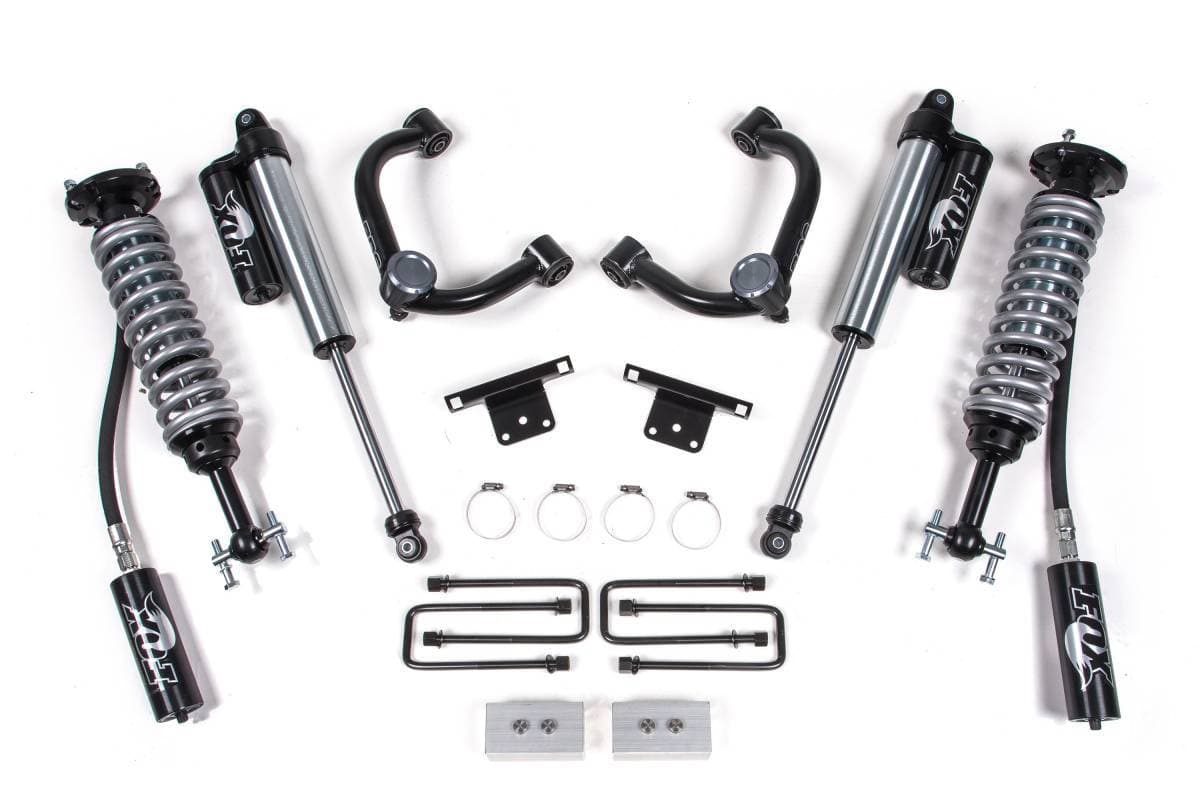

2 Inch Lift Kit | FOX 2.5 Factory Series Coilover | 2014-2020 Ford F150 4WD | BDS Suspension

Overview

This 2-inch lift kit for the 2014–2020 Ford F150 4WD combines FOX Factory Series 2.5 coil-over shocks with heavy-duty tubular upper control arms to improve stance, performance, and off-road capability. The kit includes everything needed to lift your truck and provides clearance for up to 35-inch tires. Up front, FOX 2.5 Factory Series remote reservoir coil-over shocks and HD upper control arms handle the lift. In the rear, a complementary set of FOX 2.0 Performance shocks delivers a smooth ride.

Features

• FOX 2.5 Factory Series coil-over shocks designed for increased travel and the ability to soak up rough terrain
• DSC adjuster provides precise tuning with 10 separate low-speed and 12 high-speed compression levels via two adjuster knobs
• Remote reservoir increases fluid capacity and cooling efficiency with a black anodized aluminum housing
• HD upper control arms provide superior strength and proper alignment
• 1.5" OD x .120-wall tubular UCA construction with indexed ball joint cup for correct positioning, additional down travel, and camber adjustment
• Durometer-specific rubber bushings at frame mounting ends for maintenance-free operation
• Greaseable ball joints for smooth, quiet operation and superior durability
• UCAs finished in durable black powder coat with billet aluminum dust cap
• Adjustable height to fine-tune lift level and achieve a level stance front to rear
• 100% bolt-on installation
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specifications

• Lift Height: 2–3.5"
• Front Lift Method: Coil-Over
• Front Lift Height: 2"
• Rear Lift Method: Block
• Rear Lift Height: 2"
• Shocks Included: Yes

Installation

• Estimated Installation Time: 3 hours
• Installation Difficulty: Moderate
• Tools Required: Cut-off Tool, Reciprocating Saw

Important Notes

Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009–13 model kits. Will not fit HD models (7 Lug).
