Configured with FOX 2.5 Performance Series HTO coil-overs up front. Features a 2.5-inch impact extruded aluminum body, 5/8-inch hard chrome plated heat-treated alloy steel shaft, and Hydraulic Top Out (HTO) technology for position-sensitive rebound damping control on and off the pavement. Fully serviceable for a lifetime of use. Includes a 1-year Manufacturer's Warranty.
Overview

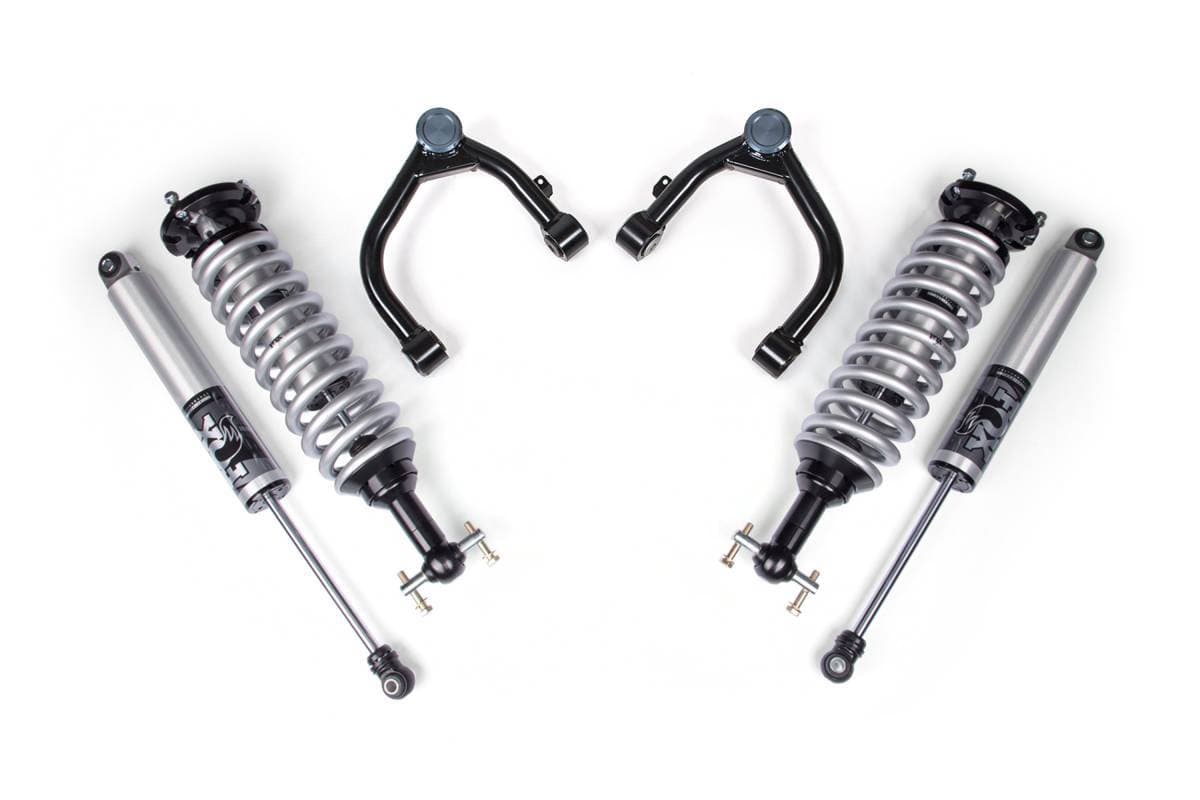

The BDS 2-inch Leveling Kit for 2019–2026 GM 1500 trucks delivers a premium blend of improved stance, enhanced ride quality, and off-road capability. This system features heavy-duty BDS tubular upper control arms equipped with high-strength ball joints that are significantly stronger than OEM, reducing the risk of unwanted failures and ensuring long-term durability. The arms optimize ball joint angles and increase suspension travel for reliable performance in demanding conditions. FOX 2.5 Performance Series rear shocks complement the front coil-overs, delivering balanced handling, fade-resistant performance, and enhanced stability on and off the road. The result is a durable, high-performance leveling solution that maintains factory-like drivability while offering a stronger, more aggressive stance and noticeably improved all-terrain ride quality.
Features
- BDS upper control arms with improved range of motion and increased strength over OEM components
- Choice of FOX 2.0 Snap Ring coilover, FOX 2.0 Performance Series coilover, or FOX 2.5 Performance Series HTO coilover — improves ride, handling, and towing versus OEM suspension
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 Performance Series IFP rear shocks included
- Factory Protection Plus drivetrain warranty included
- 100% bolt-on installation
Specifications
- Lift Height: 2 inches
- Upper control arms: heavy-duty BDS tubular construction with high-strength ball joints
- FOX rear shocks: 2.0-inch impact extruded aluminum body, IFP monotube design, CNC machined 6061-T6 aluminum mounting ends, 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, clear anodized finish
- Front coilover options: FOX 2.0 Snap Ring, FOX 2.0 Performance Series, or FOX 2.5 Performance Series HTO (see variant for details)
Installation
- Estimated Time: 3 hours
- Difficulty: Easy
- Tools Required: Basic hand tools, ball joint separation tool
Important Notes
- Requires a maximum of 5.5-inch backspacing wheel for tire clearance to the upper ball joint when used on 2–3.5-inch kits.
- Will not fit models equipped with ARC.
