Includes a 4 Inch Rear Block Kit for a level stance front to rear. Recommended for most diesel models without top-mounted overload rear springs.
Overview

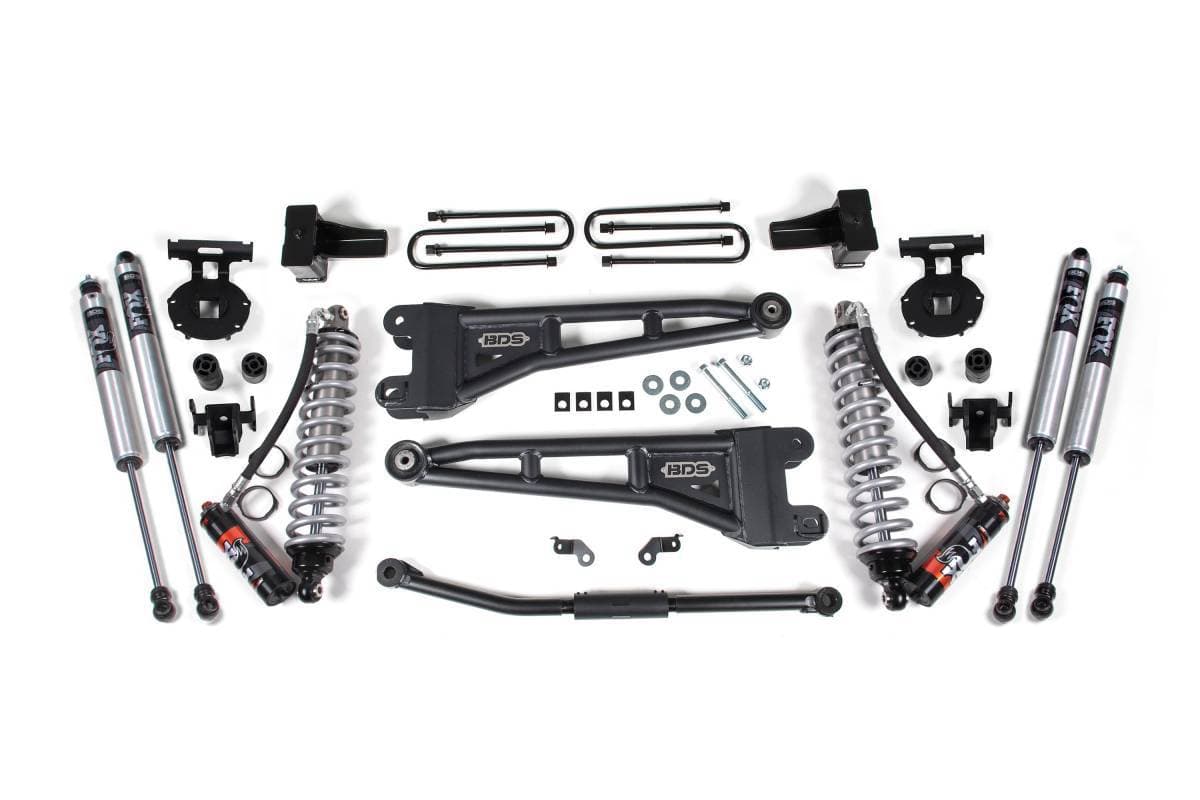

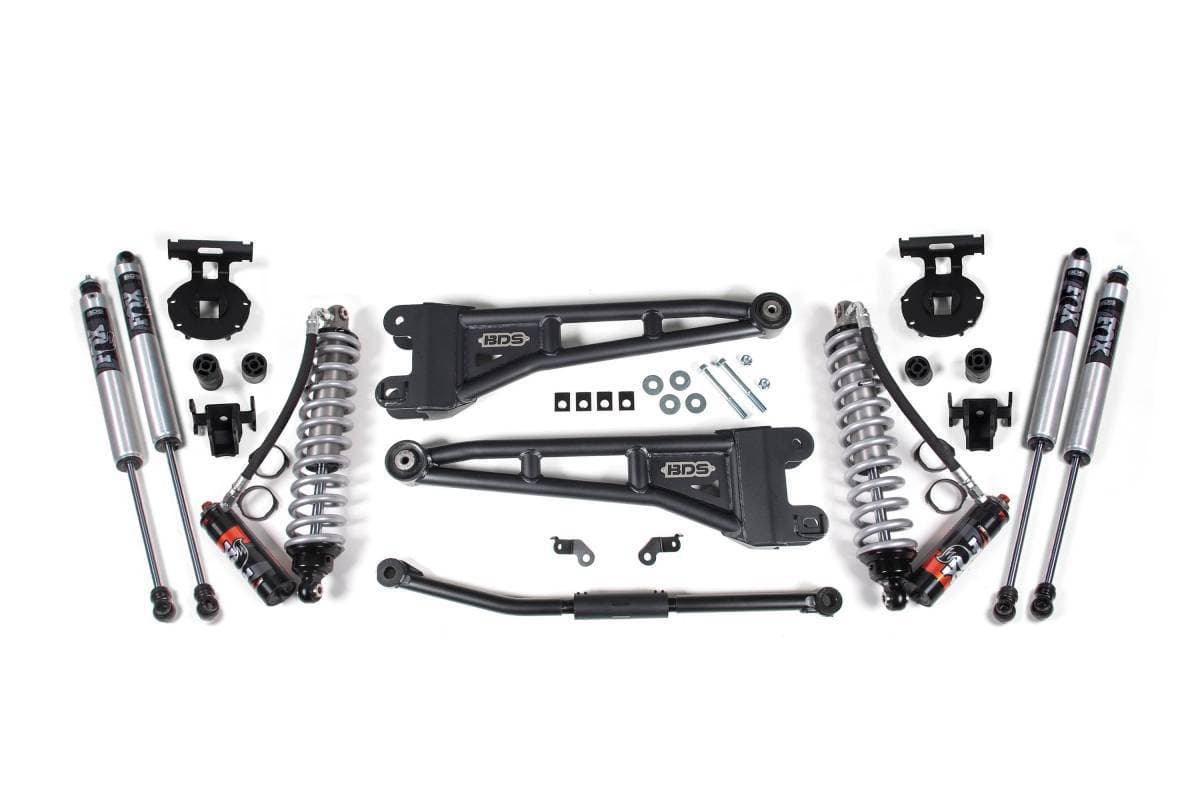

BDS Suspension's 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coilover shocks is engineered for 2011–2016 Ford F250 and F350 Super Duty diesel-powered 4WD trucks. Designed to improve stance, performance, and capability, this kit includes everything needed to properly lift your vehicle with clearance for tires up to 35 inches. Up front, the kit features diesel-specific FOX 2.5 coilover shocks, heavy-duty replacement radius arms, a high-strength 1-3/8-inch solid steel adjustable track bar for steering correction, and brake line brackets. In the rear, the kit uses a high-strength fabricated lift block, longer u-bolts, and a matched set of FOX Performance shocks.
Features
- FOX 2.5 coilover mounts in the factory coil bucket location
- Adds a secondary FOX 2.0 shock for maximum performance
- Eibach coil springs for smooth ride through rough terrain
- Heavy-duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide a level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Specifications
- Front lift: 2.5 inches via FOX 2.5 Performance Elite coilover shocks
- Tire clearance: up to 35 inches
- Track bar: 1-3/8-inch solid steel, pre-assembled with bushings, bolts into factory mounting points
- Radius arms: high-strength tubular steel, mount into factory location with OE-style rubber bushing at frame mount
- FOX 2.5 Performance Elite shocks: 2.5-inch diameter, remote reservoir, 10-position low-speed compression adjustment, 12-position high-speed compression adjustment, black anodized aluminum reservoir
- Rear: fabricated steel lift block with longer u-bolts and FOX Performance rear shocks
Installation
- Estimated Time: 7 hours
- Difficulty: Difficult
- Tools Required: Basic Hand Tools, Drill / Bit Set, Reciprocating Saw
Important Notes
- Designed for diesel models without top-mounted overload rear springs.
- Models equipped with a factory 3-3/4 inch rear block do not require an additional rear block kit to achieve a level stance.
- For a tail-high stance, substitute #013519 5-inch rear block kit.
